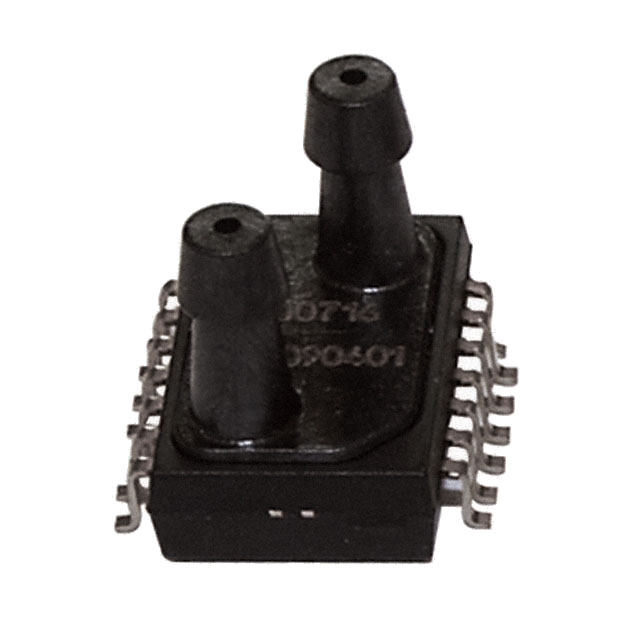

NPA-300B-05WD

NPA-300B-05WD

Part Number	NPA-300B-05WD
Manufacturer	Amphenol NovaSensor
Other Part Numbers	45-NPA-300B-05WDTR-ND 45-NPA-300B-05WDCT-ND 45-NPA-300B-05WDDKR-ND 45-NPA-300B-05WDCT 45-NPA-300B-05WDDKR 235-1406-2 235-1406-1 235-1406-1-ND 235-1406-2-ND 235-1406-6 45-NPA-300B-05WD/100CT 235-1406-6-ND 45-NPA-300B-05WDTR 45-NPA-300B-05WD/100CT-ND NPA-300B-05WD/100 45-NPA-300B-05WD/100TR 45-NPA-300B-05WD/100TR-ND 45-NPA-300B-05WD/100DKR 45-NPA-300B-05WD/100DKR-ND
Description	SENSOR 0.18PSID 0.12" 3V
Detailed Description	Pressure Sensor 0.18PSI (1.25kPa) Differential Male - 0.12" (3mm) Tube, Dual 0.5 V ~ 3 V 14-SOIC Module, Top Port
Manufacturer Standard Lead Time	19 weeks

Product Attributes

Category		Sensors, Transducers Pressure Sensors, Transducers
Manufacturer		Amphenol NovaSensor
Series		NPA-300
Packaging		Tape & Reel (TR) Cut Tape (CT)
Part Status		Active
Features		Amplified Output, Temperature Compensated
Package / Case		14-SOIC Module, Top Port
Output Type		Analog Voltage
Mounting Type		Surface Mount
Output		0.5 V ~ 3 V
Operating Pressure		0.18PSI (1.25kPa)
Pressure Type		Differential
Accuracy		±1.5%
Operating Temperature		-40°C ~ 125°C
Termination Style		Gull Wing
Voltage - Supply		3.135V ~ 3.465V
Port Size		Male - 0.12" (3mm) Tube, Dual
Applications		Board Mount
Port Style		Barbed

Documents & Media

RESOURCE TYPE		LINK
Datasheets		NPA-300B-05WD
Datasheets		Healthcare Sensors, Prod Brochure
Datasheets		NPA Series, Appl Guide
Datasheets		P2701HS Pcell Die 24/May/2018
Datasheets		NPA Series.pdf

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		9026.20.4000
Moisture Sensitivity Level (MSL)		5A (24 Hours)
RoHS Status		RoHS Compliant

In Stock: 282
