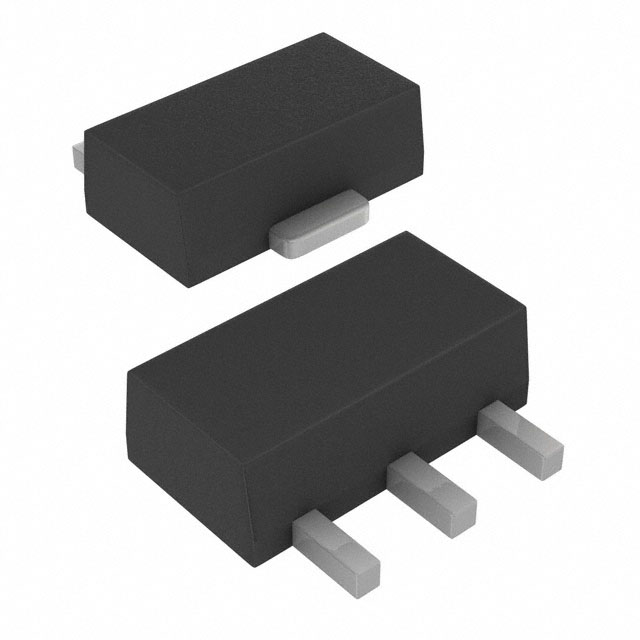

NJM78L20UA

Part Number
NJM78L20UA
Manufacturer RICOH/Nisshinbo Micro Devices
Other Part Numbers
2129-NJM78L20UA-ND
NJM78L20UA-ND
2129-NJM78L20UA
Description IC REG LINEAR 20V 100MA SOT89
Detailed Description Linear Voltage Regulator IC Positive Fixed 1 Output 100mA SOT-89
Datasheet Datasheet

Product Attributes

Category
Manufacturer RICOH/Nisshinbo Micro Devices
Series
Packaging
Tube
Part Status Obsolete
Package / Case TO-243AA
Output Type Fixed
Mounting Type Surface Mount
Current - Output 100mA
Operating Temperature -40°C ~ 85°C
Output Configuration Positive
Current - Quiescent (Iq) 7 mA
Voltage - Input (Max) 40V
Number of Regulators 1
Supplier Device Package SOT-89
Voltage - Output (Min/Fixed) 20V
PSRR 58dB (120Hz)
Protection Features Over Temperature, Short Circuit

Documents & Media

RESOURCE TYPE LINK
Datasheets NJM78L20UA

Environmental & Export Classifications

ATTRIBUTE DESCRIPTION
ECCN EAR99
HTSUS 8542.39.0001
Moisture Sensitivity Level (MSL) 1 (Unlimited)
RoHS Status RoHS non-compliant

Obsolete

This product is no longer manufactured.
