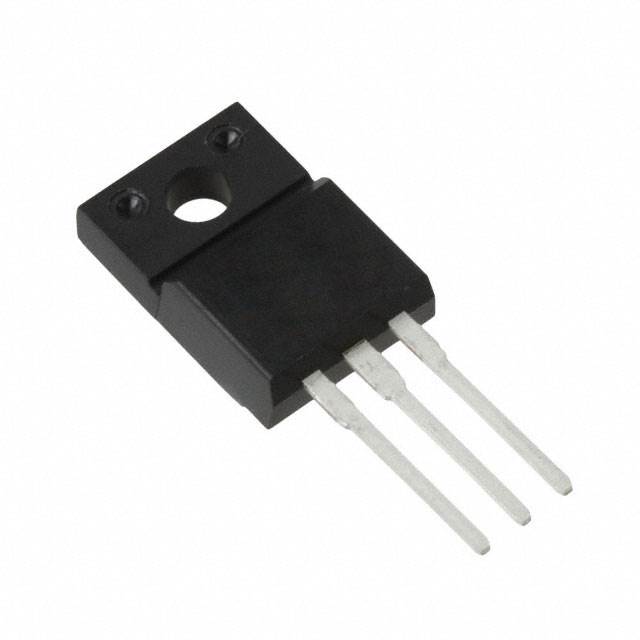

NJM7815FA

Part Number
NJM7815FA
Manufacturer RICOH/Nisshinbo Micro Devices
Other Part Numbers
2129-NJM7815FA-ND
NJM#7815FA
NJM7815FA-ND
NJM7815FA#-NDL
NJM7815FA-NDL
NJM7815FA#
NJM7815FAINACTIVE-ND
2129-NJM7815FAINACTIVE
2129-NJM7815FA
NJM#7815FA-ND
NJM7815FA#-ND
NJM7815FAINACTIVE
Q5643681
Description IC REG LINEAR 15V 1.5A TO220F
Detailed Description Linear Voltage Regulator IC Positive Fixed 1 Output 1.5A TO-220F
Manufacturer Standard Lead Time 26 weeks
Datasheet Datasheet

Product Attributes

Category
Manufacturer RICOH/Nisshinbo Micro Devices
Series
Packaging
Bulk
Part Status Active
Package / Case TO-220-3 Full Pack
Output Type Fixed
Mounting Type Through Hole
Current - Output 1.5A
Operating Temperature -40°C ~ 85°C
Output Configuration Positive
Current - Quiescent (Iq) 6 mA
Voltage - Input (Max) 35V
Number of Regulators 1
Supplier Device Package TO-220F
Voltage - Output (Min/Fixed) 15V
PSRR 70dB (120Hz)
Protection Features Over Temperature, Short Circuit

Documents & Media

RESOURCE TYPE LINK
Datasheets NJM7815FA

Environmental & Export Classifications

ATTRIBUTE DESCRIPTION
ECCN EAR99
HTSUS 8542.39.0001
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH Unaffected
RoHS Status RoHS Compliant

In Stock: 65620

Can ship immediately.
PACKAGING QUANTITY UNIT PRICE EXT PRICE
