NCV97311MW50AR2G _ Voltage Regulators - Linear + Switching_Power Management (PMIC)_Integrated Circuits (ICs)

Part Number	NCV97311MW50AR2G
Manufacturer	Sanyo Semiconductor/onsemi
Other Part Numbers	NCV97311MW50AR2GOSTR-ND NCV97311MW50AR2GOSCT-ND NCV97311MW50AR2GOSDKR-ND NCV97311MW50AR2GOSCT NCV97311MW50AR2GOSTR NCV97311MW50AR2GOSDKR
Description	IC REG QUAD BUCK/LNR SYNC 32QFNW
Detailed Description	PMIC - Voltage Regulators - Linear Switching 4 Output Step-Down (Buck) Synchronous (2), Linear (LDO) (2) 2MHz ~ 2.6MHz 32-QFNW (5x5)
Manufacturer Standard Lead Time	49 weeks
Datasheet	Datasheet

Category		Integrated Circuits (ICs) Power Management (PMIC) Voltage Regulators - Linear + Switching
Manufacturer		Sanyo Semiconductor/onsemi
Series
Packaging		Tape & Reel (TR) Cut Tape (CT)
Part Status		Active

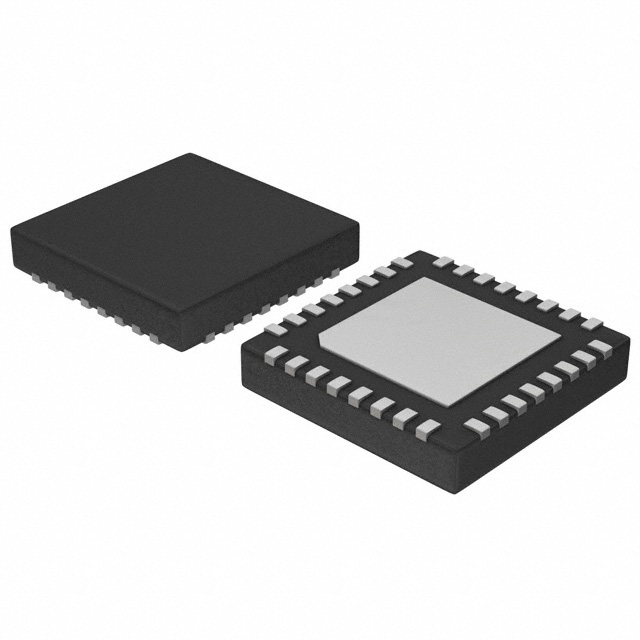

Package / Case		32-VFQFN Exposed Pad
Mounting Type		Surface Mount, Wettable Flank
Operating Temperature		-40°C ~ 125°C (TA)
Voltage - Supply		4.1V ~ 18V
Frequency - Switching		2MHz ~ 2.6MHz
Topology		Step-Down (Buck) Synchronous (2), Linear (LDO) (2)
Supplier Device Package		32-QFNW (5x5)
Voltage/Current - Output 1		5V, 3A
Voltage/Current - Output 2		1.2V ~ 3.3V, 1.5A
Voltage/Current - Output 3		1.2V ~ 3.3V, 1.5A
w/LED Driver		No
w/Supervisor		No
w/Sequencer		No
Grade		Automotive
Number of Outputs		4
Qualification		AEC-Q100

RESOURCE TYPE		LINK
Datasheets		NCV97311MW50AR2G
Datasheets		onsemi RoHS
Datasheets		onsemi REACH
Datasheets		Material Declaration NCV97311MW50AR2G
Datasheets		NCV Assy SITE 16/Oct/2023

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8542.39.0001
Moisture Sensitivity Level (MSL)		3 (168 Hours)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant
