Part Number |
NCV8502D80R2
|
---|---|
Manufacturer | Sanyo Semiconductor/onsemi |
Other Part Numbers |
NCV8502D80R2OS-ND
NCV8502D80R2OS
|
Description | IC REG LINEAR 8V 150MA 8SOIC |
Detailed Description | Linear Voltage Regulator IC Positive Fixed 1 Output 150mA 8-SOIC |
Datasheet | Datasheet |
Category | ||
---|---|---|
Manufacturer | Sanyo Semiconductor/onsemi | |
Series | ||
Packaging |
Tape & Reel (TR)
|
|
Part Status | Obsolete | |

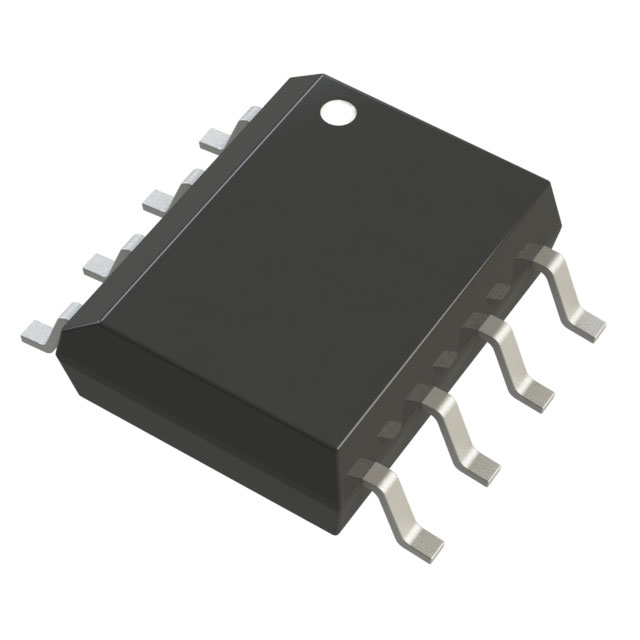

Package / Case | 8-SOIC (0.154", 3.90mm Width) | |
Output Type | Fixed | |
Mounting Type | Surface Mount | |
Current - Output | 150mA | |
Operating Temperature | -40°C ~ 150°C | |
Output Configuration | Positive | |
Current - Quiescent (Iq) | 150 µA | |
Voltage - Input (Max) | 45V | |
Number of Regulators | 1 | |
Supplier Device Package | 8-SOIC | |
Voltage - Output (Min/Fixed) | 8V | |
Control Features | Enable, Reset | |
Grade | Automotive | |
Voltage Dropout (Max) | 0.6V @ 150mA | |
Protection Features | Over Temperature, Reverse Polarity, Short Circuit | |
Current - Supply (Max) | 19 mA | |
Qualification | AEC-Q100 |
RESOURCE TYPE | LINK | |
---|---|---|
Datasheets | NCV8502D80R2 | |
Datasheets | onsemi RoHS | |
Datasheets | onsemi REACH | |
Datasheets | Multiple Devices 27/Jun/2007 |
ATTRIBUTE | DESCRIPTION | |
---|---|---|
ECCN | EAR99 | |
HTSUS | 8542.39.0001 | |
Moisture Sensitivity Level (MSL) | 1 (Unlimited) | |
REACH Status | REACH Unaffected | |
RoHS Status | RoHS non-compliant |
