NCP1117ST18T3G

NCP1117ST18T3G

Part Number	NCP1117ST18T3G
Manufacturer	Sanyo Semiconductor/onsemi
Other Part Numbers	NCP1117ST18T3GOSTR-ND NCP1117ST18T3GOSCT-ND NCP1117ST18T3GOSDKR-ND NCP1117ST18T3GOS-ND NCP1117ST18T3GOS NCP1117ST18T3GOSTR NCP1117ST18T3GOSDKR 2156-NCP1117ST18T3G-OS NCP1117ST18T3GOSCT ONSONSNCP1117ST18T3G
Description	IC REG LINEAR 1.8V 1A SOT223
Detailed Description	Linear Voltage Regulator IC Positive Fixed 1 Output 1A SOT-223
Manufacturer Standard Lead Time	11 weeks
Datasheet	Datasheet

Product Attributes

Category		Integrated Circuits (ICs) Power Management (PMIC) Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
Manufacturer		Sanyo Semiconductor/onsemi
Series
Packaging		Tape & Reel (TR) Cut Tape (CT)
Part Status		Active

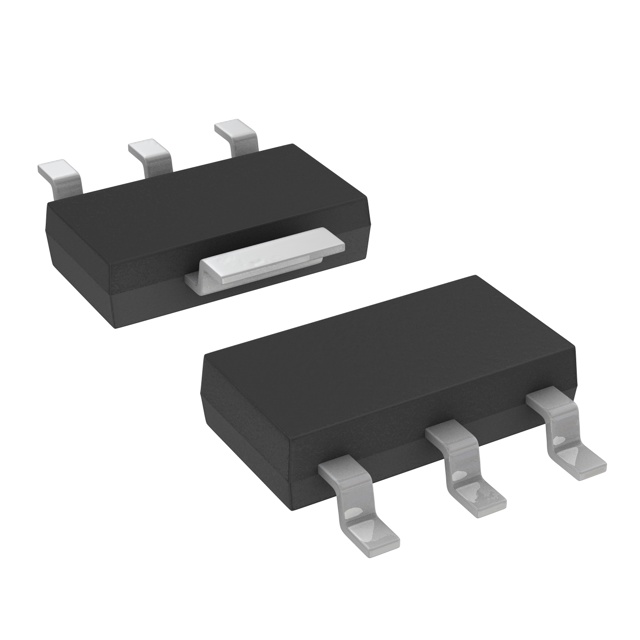

Package / Case		TO-261-4, TO-261AA
Output Type		Fixed
Mounting Type		Surface Mount
Current - Output		1A
Operating Temperature		0°C ~ 125°C
Output Configuration		Positive
Current - Quiescent (Iq)		10 mA
Voltage - Input (Max)		20V
Number of Regulators		1
Supplier Device Package		SOT-223
Voltage - Output (Min/Fixed)		1.8V
PSRR		70dB (120Hz)
Voltage Dropout (Max)		1.2V @ 800mA
Protection Features		Over Current, Over Temperature

Documents & Media

RESOURCE TYPE		LINK
Datasheets		NCP1117ST18T3G
Datasheets		onsemi RoHS
Datasheets		onsemi REACH
Datasheets		Material Declaration NCP1117ST18T3G
Datasheets		Covering Tape/Material Chg 20/May/2016

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8542.39.0001
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant

In Stock: 14168

Can ship immediately.
