NCID9210 _ Digital Isolators_Isolators

Part Number	NCID9210
Manufacturer	Sanyo Semiconductor/onsemi
Other Part Numbers	488-NCID9210-ND 488-NCID9210
Description	NCID9210R2
Detailed Description	I2C, SPI Digital Isolator 5000Vrms 2 Channel 50Mbps 100kV/µs CMTI 16-SOIC (0.295", 7.50mm Width)
Manufacturer Standard Lead Time	6 weeks
Datasheet	Datasheet

Category		Isolators Digital Isolators
Manufacturer		Sanyo Semiconductor/onsemi
Series
Packaging		Tube
Part Status		Active

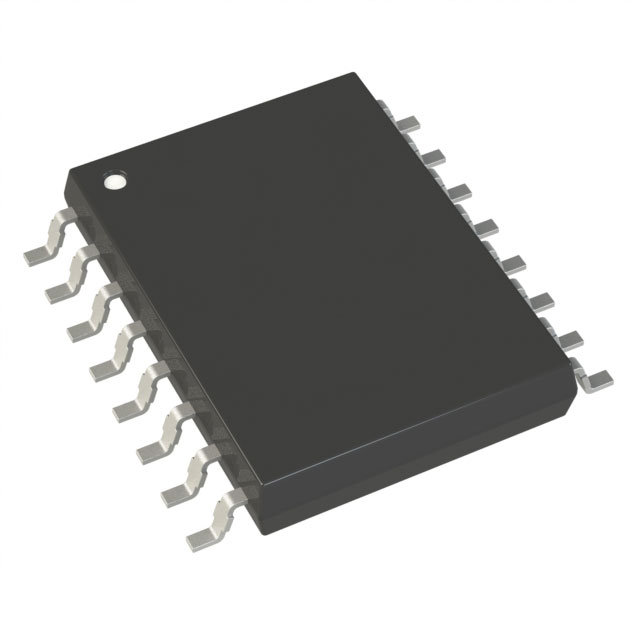

Package / Case		16-SOIC (0.295", 7.50mm Width)
Mounting Type		Surface Mount
Type		I2C, SPI
Operating Temperature		-40°C ~ 125°C
Voltage - Supply		2.5V ~ 5.5V
Data Rate		50Mbps
Technology		Capacitive Coupling
Voltage - Isolation		5000Vrms
Inputs - Side 1/Side 2		1/1
Supplier Device Package		16-SOIC
Rise / Fall Time (Typ)		2.2ns, 3ns
Common Mode Transient Immunity (Min)		100kV/µs
Propagation Delay tpLH / tpHL (Max)		25ns, 25ns
Isolated Power		No
Channel Type		Unidirectional
Pulse Width Distortion (Max)		10ns
Grade		Automotive
Number of Channels		2
Qualification		AEC-Q100

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8542.39.0001
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant

Can ship immediately.
