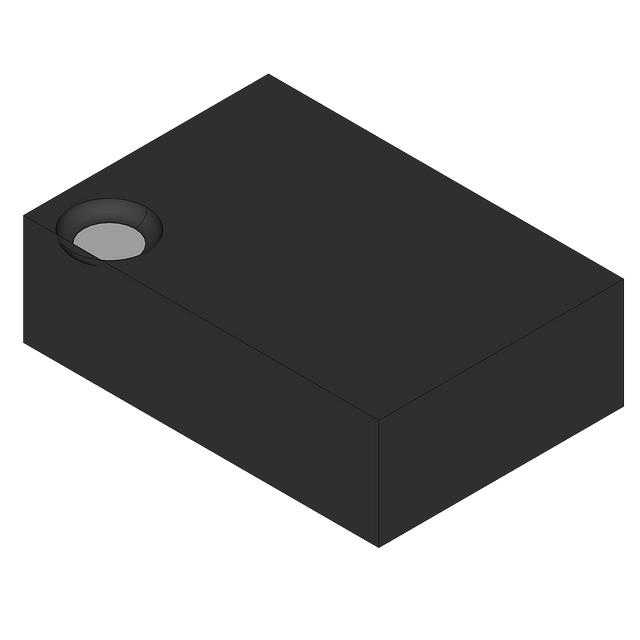

NC7SZ58L6X

Part Number
NC7SZ58L6X
Manufacturer Fairchild Semiconductor
Other Part Numbers
2156-NC7SZ58L6X-ND
ONSFSCNC7SZ58L6X
2156-NC7SZ58L6X
Description TINYLOGIC UHS UNIVERSAL CONFIGUR
Detailed Description Configurable Multiple Function Configurable 1 Circuit 3 Input 6-MicroPak

Product Attributes

Category
Manufacturer Fairchild Semiconductor
Series
7SZ
Packaging
Bulk
Part Status Active
Package / Case 6-UFDFN
Output Type Single-Ended
Mounting Type Surface Mount
Logic Type Configurable Multiple Function
Operating Temperature -40°C ~ 85°C
Voltage - Supply 1.65V ~ 5.5V
Current - Output High, Low 32mA, 32mA
Number of Inputs 3
Schmitt Trigger Input No
Supplier Device Package 6-MicroPak
Number of Circuits 1

Documents & Media

RESOURCE TYPE LINK

Environmental & Export Classifications

ATTRIBUTE DESCRIPTION
ECCN EAR99
HTSUS 8542.39.0001

Available To Order

PACKAGING QUANTITY UNIT PRICE EXT PRICE
{{ p.name }} {{ numberFormat(p.buyQty) }} {{ priceFormat(p.unitPrice) }} {{ priceFormat(p.totalPrice) }}
Total Amount: {{ priceFormat(quotes.total) }} (including {{ priceFormat(quotes.fee) }} fee)

{{ package.name }}

QUANTITY UNIT PRICE EXT PRICE
{{ numberFormat(price.break_quantity) }} {{ priceFormat(price.unit_price) }} {{ priceFormat(price.break_quantity * price.unit_price) }}
Detailed pricing is currently unavailable.
Detailed packaging information is temporarily unavailable.
