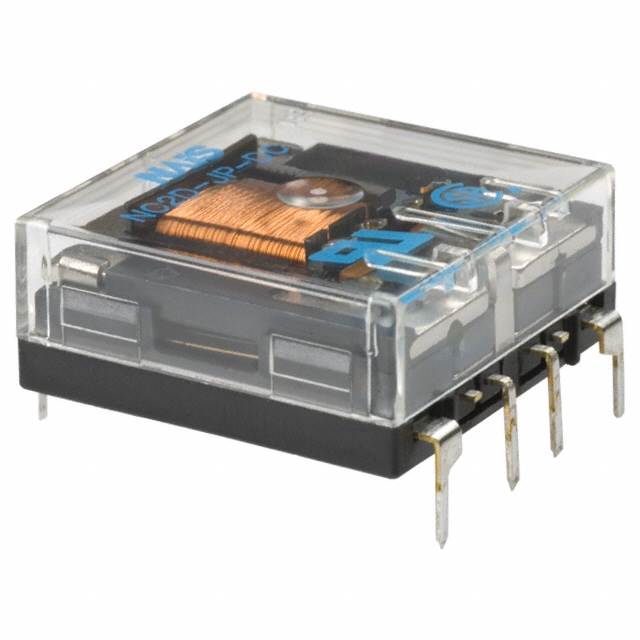

NC2D-JP-DC5V _ Power Relays, Over 2 Amps_Relays

Part Number	NC2D-JP-DC5V
Manufacturer	Panasonic Electric Works
Other Part Numbers	255-1399-ND NC2DJPDC5V 255-1399
Description	RELAY GEN PURPOSE DPDT 5A 5V
Detailed Description	General Purpose Relay DPDT (2 Form C) 5VDC Coil Through Hole
Manufacturer Standard Lead Time	16 weeks
Datasheet	Datasheet

Category		Relays Power Relays, Over 2 Amps
Manufacturer		Panasonic Electric Works
Series		NC
Packaging		Tray
Part Status		Active
Mounting Type		Through Hole
Coil Voltage		5VDC
Operating Temperature		-40°C ~ 70°C
Termination Style		PC Pin
Approval Agency		CSA, UR
Relay Type		General Purpose
Coil Current		72 mA
Coil Type		Non Latching
Contact Material		Silver Nickel (AgNi), Gold (Au)
Contact Form		DPDT (2 Form C)
Contact Rating (Current)		5 A
Switching Voltage		250VAC - Max
Must Release Voltage		0.5 VDC
Must Operate Voltage		4 VDC
Operate Time		20 ms
Release Time		10 ms
Coil Resistance		69.4 Ohms
Load - Max Switching		1250VA

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8536.41.0020
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant
