NB634EL-LF-Z _ Voltage Regulators - DC DC Switching Regulators_Power Management (PMIC)_Integrated Circuits (ICs)

Part Number	NB634EL-LF-Z
Manufacturer	MPS (Monolithic Power Systems)
Other Part Numbers	1589-1818-2-ND 1589-1818-1-ND 1589-1818-1 1589-1818-2 1589-1818-6 NB634EL-LF-Z-ND
Description	IC REG BUCK ADJ 5A 14QFN
Detailed Description	Buck Switching Regulator IC Positive Adjustable 0.8V 1 Output 5A 14-VFDFN Exposed Pad

Category		Integrated Circuits (ICs) Power Management (PMIC) Voltage Regulators - DC DC Switching Regulators
Manufacturer		MPS (Monolithic Power Systems)
Series
Packaging		Tape & Reel (TR) Cut Tape (CT)
Part Status		Active

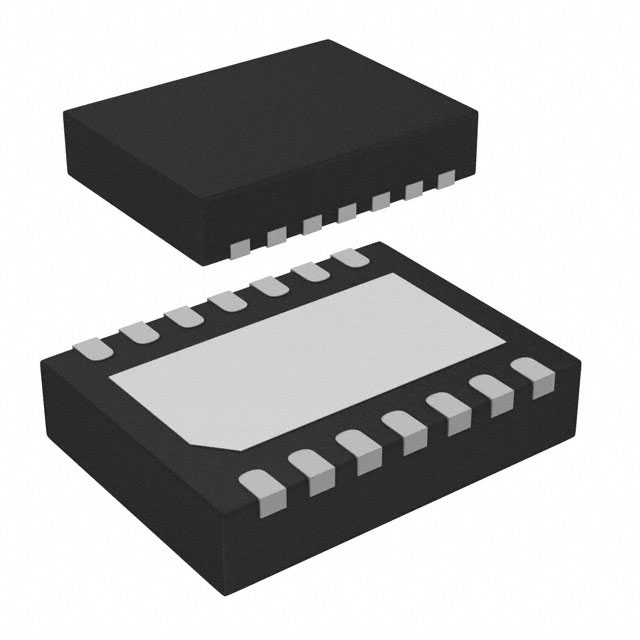

Package / Case		14-VFDFN Exposed Pad
Output Type		Adjustable
Mounting Type		Surface Mount
Number of Outputs		1
Function		Step-Down
Current - Output		5A
Operating Temperature		-20°C ~ 85°C (TA)
Output Configuration		Positive
Frequency - Switching		500kHz
Voltage - Input (Max)		24V
Topology		Buck
Supplier Device Package		14-QFN (3x4)
Synchronous Rectifier		Yes
Voltage - Output (Max)		21.6V
Voltage - Input (Min)		4.5V
Voltage - Output (Min/Fixed)		0.8V

RESOURCE TYPE		LINK
Datasheets		NB634EL-LF-Z
Datasheets		MonolithicPower Systems Environmental Compliance Declaration

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8542.39.0001
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant

Can ship immediately.
