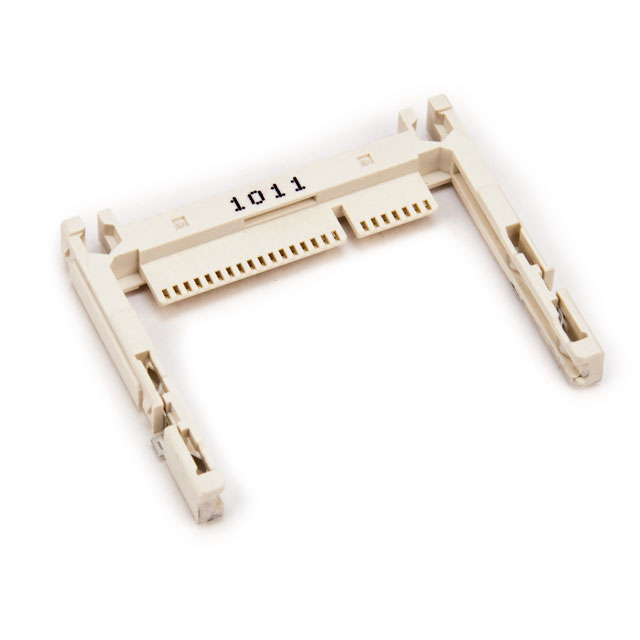

N7G24-A0B2RB-10-0HT

N7G24-A0B2RB-10-0HT

Part Number	N7G24-A0B2RB-10-0HT
Manufacturer	3M
Other Part Numbers	3M9678-ND 3M9678 7100035347 5111194714 XA007001366 N7G24A0B2RB100HT 51111947142
Description	CONN CFAST CARD PUSH-PULL R/A
Detailed Description	24 Position Card Connector CFast™ - Type I, II Surface Mount, Right Angle Gold
Manufacturer Standard Lead Time	11 weeks
Datasheet	Datasheet

Product Attributes

Category		Connectors, Interconnects Memory Connectors PC Card Sockets
Manufacturer		3M
Series		7G24
Packaging		Tray
Part Status		Active
Features		Board Guide, Card Guide
Connector Type		Connector
Contact Finish		Gold
Mounting Type		Surface Mount, Right Angle
Number of Positions		24
Card Type		CFast™ - Type I, II
Height Above Board		0.303" (7.70mm)
Contact Finish Thickness		30.0µin (0.76µm)
Mounting Feature		Normal, Standard - Top
Insertion, Removal Method		Push In, Pull Out

Documents & Media

RESOURCE TYPE		LINK
Datasheets		N7G24-A0B2RB-10-0HT
Datasheets		N7G24 Series

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8536.69.4040
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		RoHS Compliant

In Stock: 386

Can ship immediately.
