MWSD1005CP5N6BSTF _ Fixed Inductors_Inductors, Coils, Chokes

Part Number	MWSD1005CP5N6BSTF
Manufacturer	Sunlord (Shenzhen Sunlord Electronics)
Other Part Numbers	3442-MWSD1005CP5N6BSTFTR-ND 3442-MWSD1005CP5N6BSTFTR
Description	FIXED IND 5.6NH 1.6A 48MOHM SMD

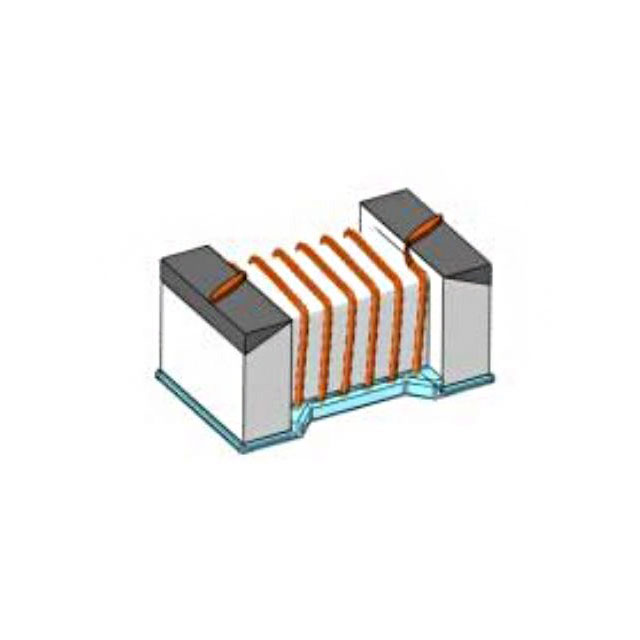

Detailed Description	5.6 nH Unshielded Drum Core, Wirewound Inductor 1.6 A 48mOhm Max 0402 (1005 Metric)
Manufacturer Standard Lead Time	14 weeks
Datasheet	Datasheet

Category		Inductors, Coils, Chokes Fixed Inductors
Manufacturer		Sunlord (Shenzhen Sunlord Electronics)
Series		MWSD-CP
Packaging		Tape & Reel (TR)
Part Status		Active
Tolerance		±0.1nH
Package / Case		0402 (1005 Metric)
Size / Dimension		0.043" L x 0.024" W (1.10mm x 0.60mm)
Mounting Type		Surface Mount
Shielding		Unshielded
Type		Drum Core, Wirewound
Operating Temperature		-40°C ~ 125°C
DC Resistance (DCR)		48mOhm Max
Q @ Freq		29 @ 250MHz
Frequency - Self Resonant		6.5GHz
Material - Core		Ceramic
Inductance Frequency - Test		250 MHz
Supplier Device Package		0402
Height - Seated (Max)		0.028" (0.70mm)
Inductance		5.6 nH
Current Rating (Amps)		1.6 A

RESOURCE TYPE		LINK
Datasheets		MWSD1005CP5N6BSTF

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8504.50.8000
Moisture Sensitivity Level (MSL)		1 (Unlimited)
