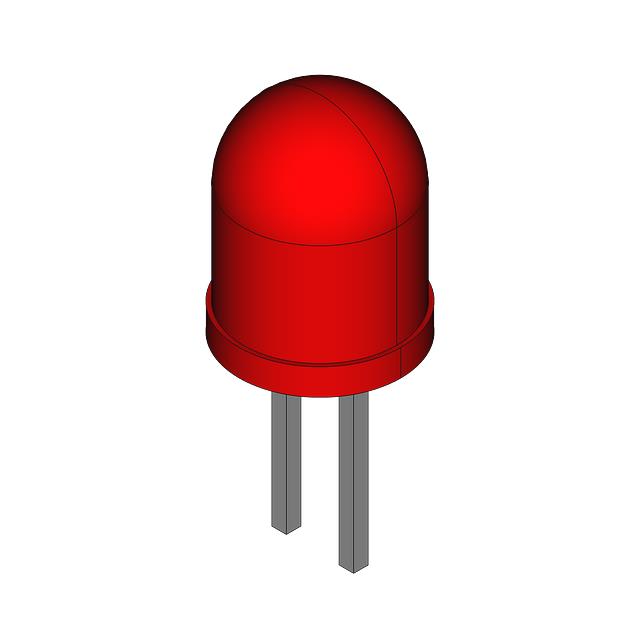

MV8805

MV8805

Part Number	MV8805
Manufacturer	Fairchild Semiconductor
Other Part Numbers	2156-MV8805-ND 2156-MV8805 FAIFSCMV8805
Description	LED ORANGE-RED CLEAR T-1 3/4 T/H
Detailed Description	Orange-Red LED Indication - Discrete 2.1V Radial

Product Attributes

Category		Optoelectronics LED Indication - Discrete
Manufacturer		Fairchild Semiconductor
Series
Packaging		Bulk
Part Status		Active
Package / Case		Radial
Color		Orange-Red
Size / Dimension		4.83mm Dia
Mounting Type		Through Hole
Millicandela Rating		2400mcd
Voltage - Forward (Vf) (Typ)		2.1V
Lens Color		Colorless
Viewing Angle		20°
Height (Max)		8.89mm
Wavelength - Peak		630nm
Supplier Device Package		T-1 3/4
Lens Transparency		Clear
Lens Style		Round with Domed Top
Lens Size		5mm, T-1 3/4

Documents & Media

RESOURCE TYPE		LINK

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8541.41.0000
Moisture Sensitivity Level (MSL)		3 (168 Hours)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant
