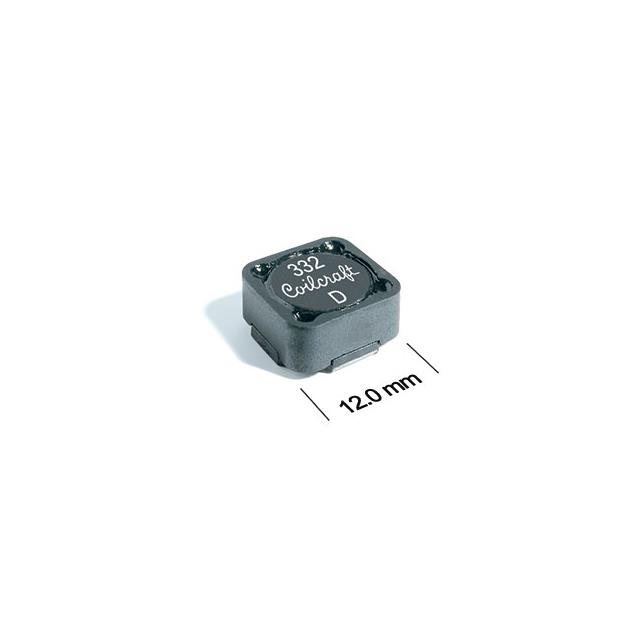

MSS1260-393MLD

Part Number
MSS1260-393MLD
Manufacturer COILCRAFT
Other Part Numbers
2457-MSS1260-393MLD-ND
2457-MSS1260-393MLD
Description FIXED IND 39UH 2.6A 64.5MOHM SM
Detailed Description 39 µH Shielded Drum Core Inductor 2.6 A 64.5mOhm Max Nonstandard
Datasheet Datasheet

Product Attributes

Category
Manufacturer COILCRAFT
Series
MSS1260
Packaging
Tape & Reel (TR)
Part Status Active
Tolerance ±20%
Package / Case Nonstandard
Size / Dimension 0.472" L x 0.472" W (12.00mm x 12.00mm)
Mounting Type Surface Mount
Shielding Shielded
Type Drum Core
Operating Temperature -40°C ~ 85°C
DC Resistance (DCR) 64.5mOhm Max
Frequency - Self Resonant 12MHz
Ratings AEC-Q200
Current - Saturation (Isat) 3.08A
Material - Core Ferrite
Inductance Frequency - Test 100 kHz
Height - Seated (Max) 0.244" (6.20mm)
Inductance 39 µH
Current Rating (Amps) 2.6 A

Documents & Media

RESOURCE TYPE LINK
Datasheets MSS1260-393MLD

Environmental & Export Classifications

ATTRIBUTE DESCRIPTION
ECCN EAR99
HTSUS 8504.50.8000
RoHS Status ROHS3 Compliant
