Category | ||
---|---|---|

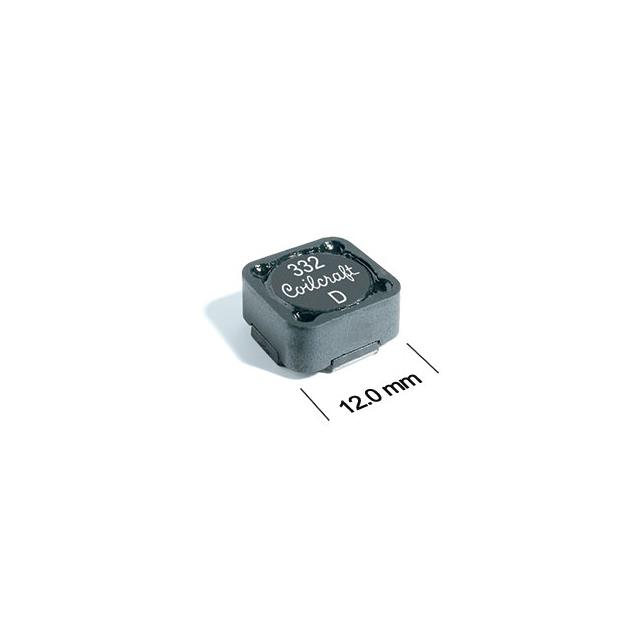

Manufacturer | COILCRAFT | |
Series |
MSS1260
|
|
Packaging |
Tape & Reel (TR)
|
|
Part Status | Active | |
Tolerance | ±30% | |
Package / Case | Nonstandard | |
Size / Dimension | 0.472" L x 0.472" W (12.00mm x 12.00mm) | |
Mounting Type | Surface Mount | |
Shielding | Shielded | |
Type | Drum Core | |
Operating Temperature | -40°C ~ 85°C | |
DC Resistance (DCR) | 6.5mOhm Max | |
Frequency - Self Resonant | 100MHz | |
Ratings | AEC-Q200 | |
Current - Saturation (Isat) | 22.7A | |
Material - Core | Ferrite | |
Inductance Frequency - Test | 100 kHz | |
Height - Seated (Max) | 0.244" (6.20mm) | |
Inductance | 1 µH | |
Current Rating (Amps) | 8 A |
RESOURCE TYPE | LINK | |
---|---|---|
Datasheets | MSS1260-102NLD |
ATTRIBUTE | DESCRIPTION | |
---|---|---|
ECCN | EAR99 | |
HTSUS | 8504.50.8000 | |
RoHS Status | ROHS3 Compliant |
