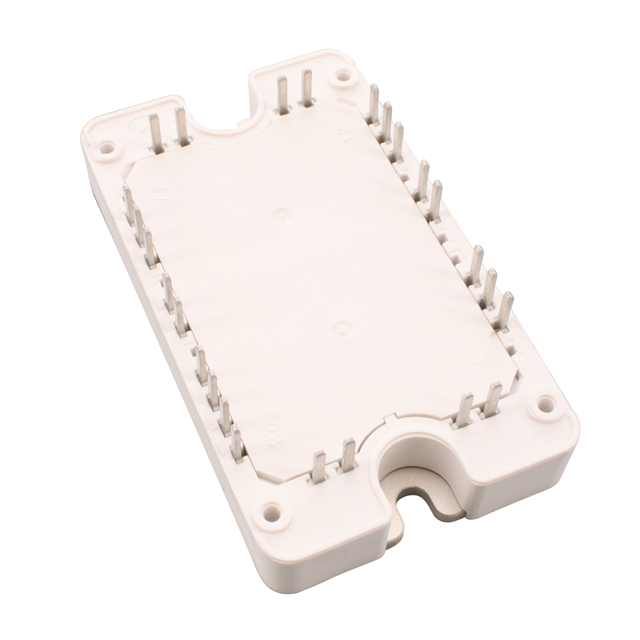

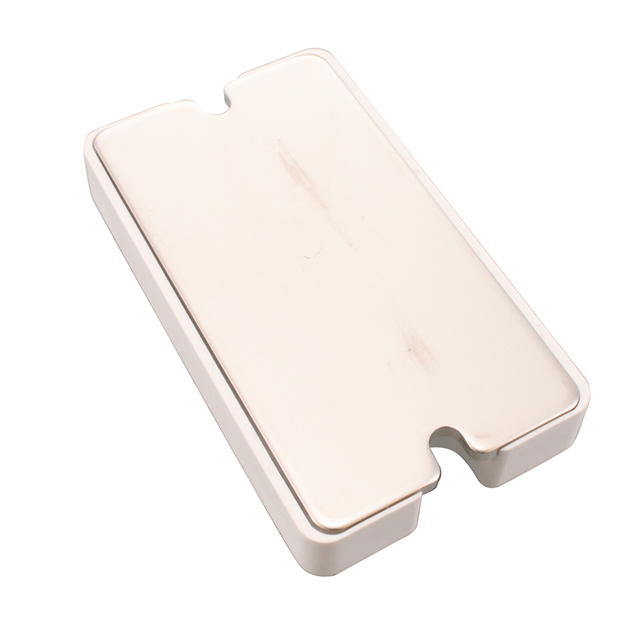

MSCSM120HM31CT3AG

MSCSM120HM31CT3AG

Part Number	MSCSM120HM31CT3AG
Manufacturer	Roving Networks (Microchip Technology)
Other Part Numbers	150-MSCSM120HM31CT3AG-ND 150-MSCSM120HM31CT3AG
Description	SIC 4N-CH 1200V 89A SP3F
Detailed Description	Mosfet Array 1200V (1.2kV) 89A (Tc) 395W (Tc) Chassis Mount SP3F
Manufacturer Standard Lead Time	37 weeks
Datasheet	Datasheet

Product Attributes

Category		Discrete Semiconductor Products Transistors FETs, MOSFETs FET, MOSFET Arrays
Manufacturer		Roving Networks (Microchip Technology)
Series
Packaging		Tube
Part Status		Active
Package / Case		Module
Mounting Type		Chassis Mount
Configuration		4 N-Channel
Operating Temperature		-40°C ~ 175°C (TJ)
Technology		Silicon Carbide (SiC)
Power - Max		395W (Tc)
Drain to Source Voltage (Vdss)		1200V (1.2kV)
Current - Continuous Drain (Id) @ 25°C		89A (Tc)
Input Capacitance (Ciss) (Max) @ Vds		3020pF @ 1000V
Rds On (Max) @ Id, Vgs		31mOhm @ 40A, 20V
Gate Charge (Qg) (Max) @ Vgs		232nC @ 20V
Vgs(th) (Max) @ Id		2.8V @ 1mA
Supplier Device Package		SP3F

Documents & Media

RESOURCE TYPE		LINK
Datasheets		Microchip RoHS
Datasheets		Microchip REACH

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8541.29.0095
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant

In Stock: 3

Can ship immediately.
