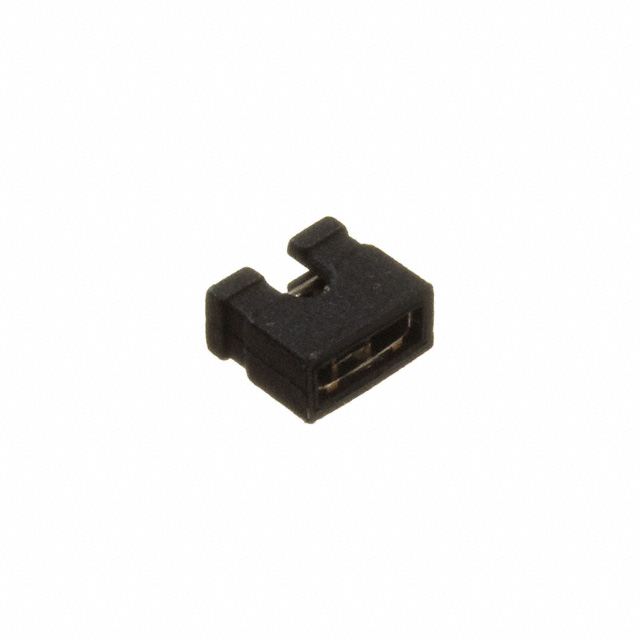

MSC-G

MSC-G

Part Number	MSC-G
Manufacturer	Adam Tech
Other Part Numbers	2057-MSC-G-ND 2057-MSC-G
Description	SHUNT 2.54MM PITCH
Detailed Description	2 (1 x 2) Position Shunt Connector Black Open Top 0.100" (2.54mm) Gold
Manufacturer Standard Lead Time	14 weeks
Datasheet	Datasheet

Product Attributes

Category		Connectors, Interconnects Shunts, Jumpers
Manufacturer		Adam Tech
Series		MS
Packaging		Bulk
Part Status		Active
Gender		Female Sockets
Contact Finish		Gold
Color		Black
Voltage Rating		250VAC
Current Rating (Amps)		3A
Pitch		0.100" (2.54mm)
Type		Open Top
Height		0.177" (4.50mm)
Number of Positions or Pins (Grid)		2 (1 x 2)
Contact Finish Thickness		Flash
Material Flammability Rating		UL94 V-0
Housing Material		Polybutylene Terephthalate (PBT), Glass Filled

Documents & Media

RESOURCE TYPE		LINK
Datasheets		MSC-G
Datasheets		ECBT2-E224053 Data Connectors, Signal, Control, Power Applications

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8538.90.8180
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant

In Stock: 1217

Can ship immediately.
