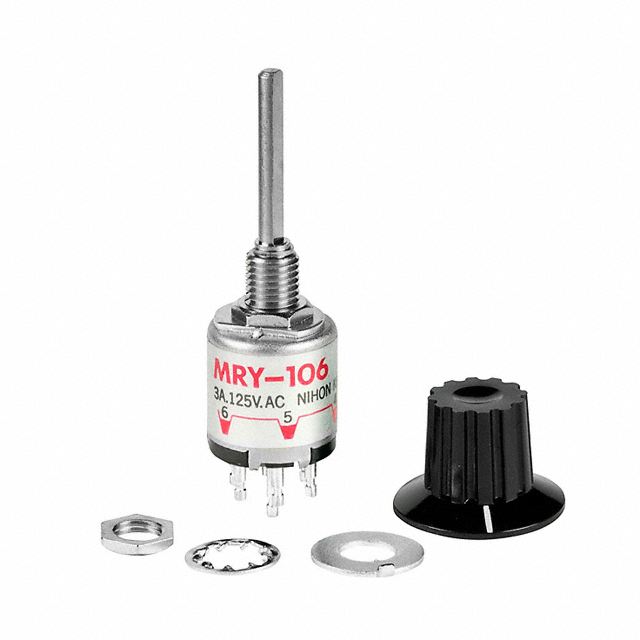

MRY106-A

MRY106-A

Part Number	MRY106-A
Manufacturer	NKK Switches
Other Part Numbers	360-2379-ND 3937-MRY106-A MRY106A 360-2379 MRY106-A-RO-ND MR-Y106-A MRY106-A-RO
Description	SWITCH ROTARY 2-6POS 3A 125V
Detailed Description	Rotary Switch 2 ~ 6 Position SP6T 3A (AC), 2A (DC) 125 VAC Panel Mount
Manufacturer Standard Lead Time	30 weeks

Product Attributes

Category		Switches Rotary Switches
Manufacturer		NKK Switches
Series		MR
Packaging		Box
Part Status		Active
Features		Sealed - Flux Protection
Contact Finish		Silver
Current Rating (Amps)		3A (AC), 2A (DC)
Mounting Type		Panel Mount
Number of Positions		2 ~ 6
Termination Style		Solder Turret
Actuator Length		13.00mm
Actuator Type		Knob
Angle of Throw		60°
Number of Decks		1
Number of Poles per Deck		1
Circuit per Deck		SP6T
Contact Material		Copper
Contact Timing		Non-Shorting (BBM)
Index Stops		Adjustable
Depth Behind Panel		24.90mm
Voltage Rating - AC		125 V
Voltage Rating - DC		30 V

Documents & Media

RESOURCE TYPE		LINK
Datasheets		MRY106-A
Product Training Modules		Switch Basics
Product Training Modules		Importance of 3D CAD Models
Video File		IP Rated Switches \| Datasheet Preview
Environmental Information		RoHS Cert - Switches & Pushbuttons
Environmental Information		NKK Switches ODC Cert
Environmental Information		NKK Switches PFOS & PFOA Free Cert
HTML Datasheet		MR Series Mini Power Level Rotaries
Product Drawings		MR(X,Y) Series

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
California Prop 65		California Prop 65 Information
ECCN		EAR99
HTSUS		8536.50.9020
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant

In Stock: 750

Can ship immediately.
