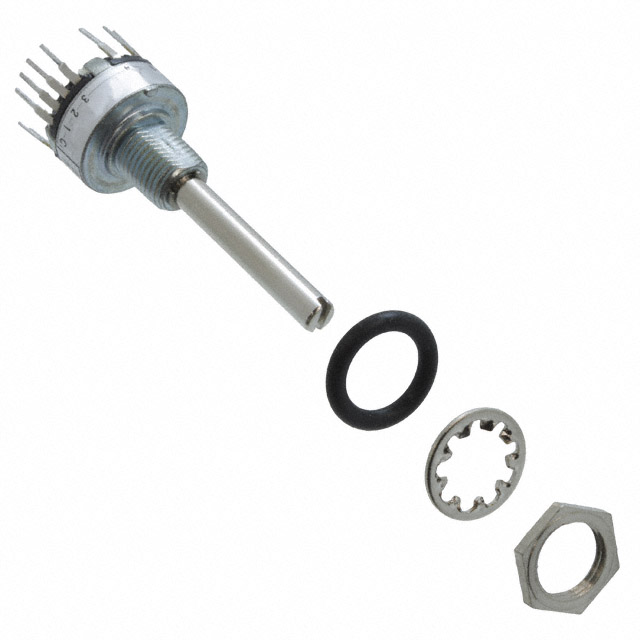

MRJE2604 _ Rotary Switches_Switches

Part Number	MRJE2604
Manufacturer	TE Connectivity ALCOSWITCH Switches
Other Part Numbers	450-1806-ND 1825537-2 -MRJE2604-SI 2266-MRJE2604 MRJE2604-ND 450-1806 1825537-2-ND 18255372
Description	SWITCH ROTARY 6POS 0.4VA 20V
Detailed Description	Rotary Switch 6 Position DP6T 0.4VA (AC/DC) 20 VAC Panel Mount, Through Hole
Manufacturer Standard Lead Time	35 weeks
Datasheet	Datasheet

Category		Switches Rotary Switches
Manufacturer		TE Connectivity ALCOSWITCH Switches
Series		MRJ
Packaging		Bulk
Part Status		Active
Features		Epoxy Sealed Terminals
Contact Finish		Gold
Current Rating (Amps)		0.4VA (AC/DC)
Mounting Type		Panel Mount, Through Hole
Number of Positions		6
Termination Style		PC Pin
Actuator Length		19.00mm
Actuator Type		Round (3.17mm Dia), Slotted
Angle of Throw		30°
Number of Decks		1
Number of Poles per Deck		2
Circuit per Deck		DP6T
Contact Material		Nickel
Contact Timing		Non-Shorting (BBM)
Index Stops		Fixed
Depth Behind Panel		8.13mm
Voltage Rating - AC		20 V
Voltage Rating - DC		20 V

RESOURCE TYPE		LINK
Datasheets		MRJE2604

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8536.50.9020
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Affected
RoHS Status		RoHS non-compliant
