MPSA20 _ Single Bipolar Transistors_Bipolar (BJT)_Transistors_Discrete Semiconductor Products

Part Number	MPSA20
Manufacturer	Sanyo Semiconductor/onsemi
Other Part Numbers	MPSA20OS-ND MPSA20FSINACTIVE MPSA20FS MPSA20OS MPSA20FS-ND
Description	TRANS NPN 40V 0.1A TO92
Detailed Description	Bipolar (BJT) Transistor NPN 40 V 100 mA 125MHz 625 mW Through Hole TO-92 (TO-226)
Datasheet	Datasheet

Category		Discrete Semiconductor Products Transistors Bipolar (BJT) Single Bipolar Transistors
Manufacturer		Sanyo Semiconductor/onsemi
Series
Packaging		Bulk
Part Status		Obsolete

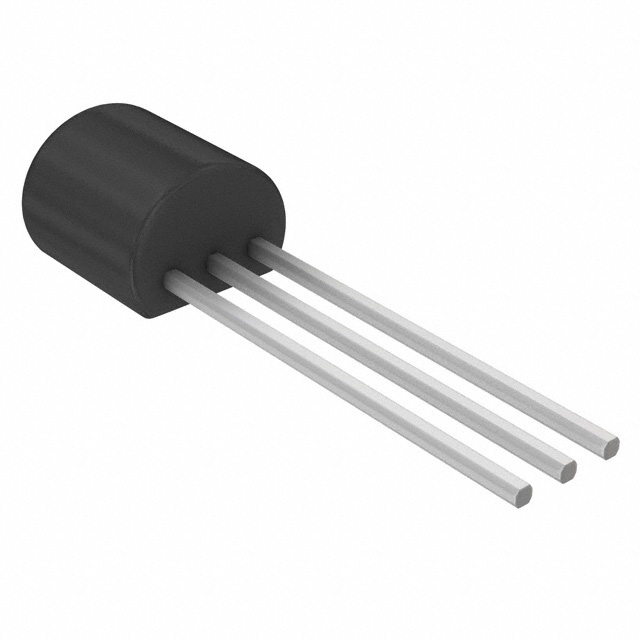

Package / Case		TO-226-3, TO-92-3 Long Body
Mounting Type		Through Hole
Transistor Type		NPN
Operating Temperature		-55°C ~ 150°C (TJ)
Vce Saturation (Max) @ Ib, Ic		250mV @ 1mA, 10mA
Current - Collector Cutoff (Max)		100nA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce		40 @ 5mA, 10V
Frequency - Transition		125MHz
Supplier Device Package		TO-92 (TO-226)
Current - Collector (Ic) (Max)		100 mA
Voltage - Collector Emitter Breakdown (Max)		40 V
Power - Max		625 mW

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8541.21.0075
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		RoHS non-compliant

This product is no longer manufactured.
