MPQ6700

Part Number
MPQ6700
Manufacturer Motorola
Other Part Numbers
2156-MPQ6700-ND
2156-MPQ6700
ONSMOTMPQ6700
Description SMALL SIGNAL BIPOLAR TRANSISTOR
Detailed Description Bipolar (BJT) Transistor Array 2 NPN, 2 PNP 40V 200mA 200MHz 500mW Through Hole TO-116

Product Attributes

Category
Manufacturer Motorola
Series
Packaging
Bulk
Part Status Active

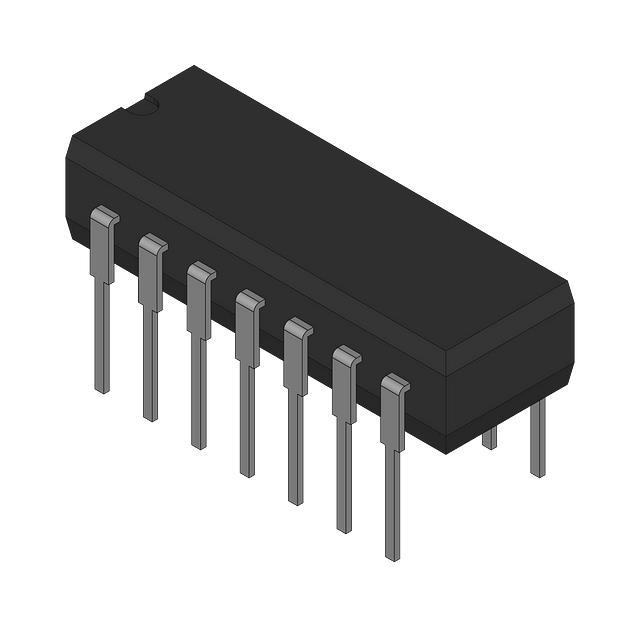

Package / Case 14-DIP (0.300", 7.62mm)
Mounting Type Through Hole
Transistor Type 2 NPN, 2 PNP
Operating Temperature -65°C ~ 150°C (TJ)
Power - Max 500mW
Current - Collector (Ic) (Max) 200mA
Voltage - Collector Emitter Breakdown (Max) 40V
Vce Saturation (Max) @ Ib, Ic 250mV @ 1mA, 10mA
Current - Collector Cutoff (Max) 50nA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce 70 @ 10mA, 1V
Frequency - Transition 200MHz
Supplier Device Package TO-116

Documents & Media

RESOURCE TYPE LINK

Environmental & Export Classifications

ATTRIBUTE DESCRIPTION
ECCN EAR99
HTSUS 8541.21.0075
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status Vendor Undefined
RoHS Status RoHS non-compliant
