MPQ6532GVE-AEC1-P

Part Number
MPQ6532GVE-AEC1-P
Manufacturer MPS (Monolithic Power Systems)
Other Part Numbers
1589-MPQ6532GVE-AEC1-PTR-ND
1589-MPQ6532GVE-AEC1-PCT-ND
1589-MPQ6532GVE-AEC1-PDKR-ND
1589-MPQ6532GVE-AEC1-PDKR
1589-MPQ6532GVE-AEC1-PCT
1589-MPQ6532GVE-AEC1-PTR
Description 5V TO 60V, THREE-PHASE BRUSHLESS
Detailed Description Multiphase Motor Driver Power MOSFET PWM, Step/Direction 28-QFN (4x5)
Manufacturer Standard Lead Time 20 weeks
Datasheet Datasheet

Product Attributes

Category
Manufacturer MPS (Monolithic Power Systems)
Series
Packaging
Tape & Reel (TR)
Cut Tape (CT)
Part Status Active

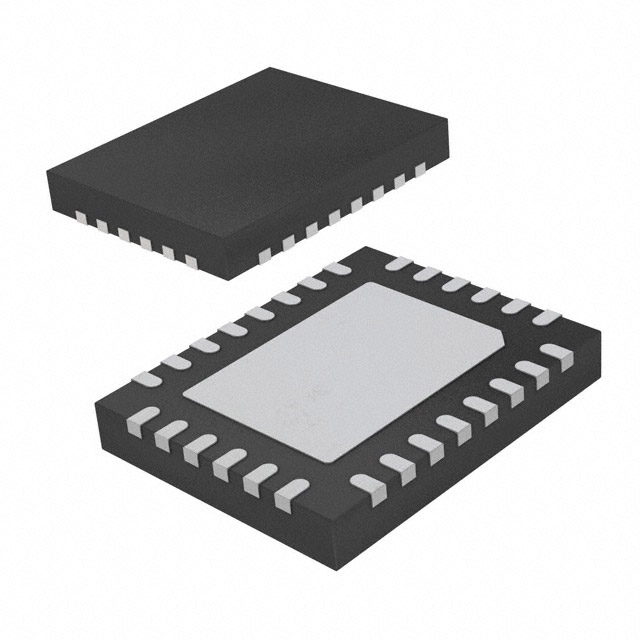

Package / Case 28-VFQFN Exposed Pad
Mounting Type Surface Mount
Function Controller - Commutation, Direction Management
Current - Output 1A
Interface PWM, Step/Direction
Operating Temperature -40°C ~ 150°C (TJ)
Output Configuration Pre-Driver - Half Bridge (3)
Voltage - Supply 5V ~ 60V
Applications General Purpose
Technology Power MOSFET
Supplier Device Package 28-QFN (4x5)
Motor Type - Stepper Multiphase
Motor Type - AC, DC Brushless DC (BLDC)
Grade Automotive
Qualification AEC-Q100

Documents & Media

Environmental & Export Classifications

ATTRIBUTE DESCRIPTION
ECCN EAR99
HTSUS 8542.39.0001
Moisture Sensitivity Level (MSL) 2 (1 Year)
REACH Status REACH Unaffected
RoHS Status ROHS3 Compliant

In Stock: 462

Can ship immediately.
