Part Number |
MPM80
|
---|---|
Manufacturer | Sanken Electric Co., Ltd. |
Other Part Numbers |
MPM80-ND
MPM80 DK
Q7813247
T2204460
|
Description | DC DC CONVERTER 3-16V 32W |
Detailed Description | Non-Isolated PoL Module DC DC Converter 1 Output 3 ~ 16V 2A 8V - 30V Input |
Category | ||
---|---|---|
Manufacturer | Sanken Electric Co., Ltd. | |
Series |
MPM
|
|
Packaging |
Tube
|
|
Part Status | Obsolete | |
Features | OCP, OTP, OVP, UVLO | |

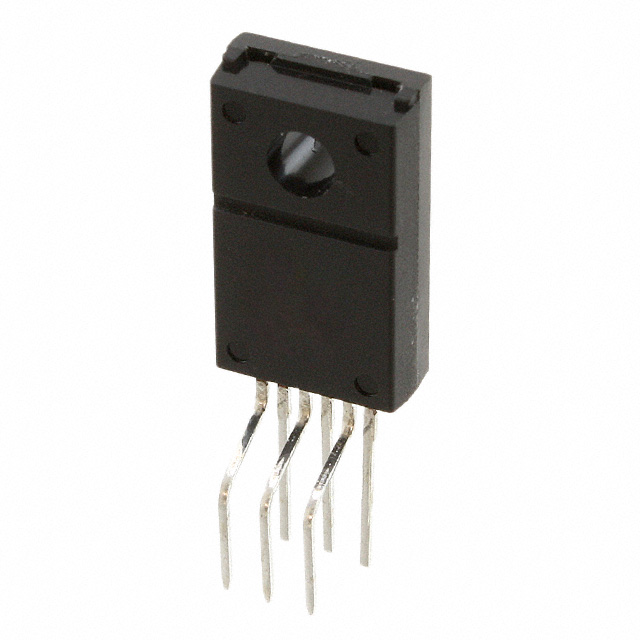

Package / Case | TO-220-8 Formed Leads, 6 Leads | |
Size / Dimension | 0.39" L x 0.17" W x 0.67" H (10.0mm x 4.3mm x 16.9mm) | |
Mounting Type | Through Hole | |
Type | Non-Isolated PoL Module | |
Operating Temperature | -20°C ~ 125°C | |
Applications | ITE (Commercial) | |
Voltage - Input (Max) | 30V | |
Efficiency | 95% | |
Current - Output (Max) | 2A | |
Supplier Device Package | TO-220F-8 | |
Voltage - Input (Min) | 8V | |
Voltage - Output 1 | 3 ~ 16V | |
Power (Watts) | 32 W | |
Number of Outputs | 1 |
RESOURCE TYPE | LINK |
---|
ATTRIBUTE | DESCRIPTION | |
---|---|---|
ECCN | EAR99 | |
HTSUS | 8504.40.9580 | |
Moisture Sensitivity Level (MSL) | 1 (Unlimited) | |
RoHS Status | RoHS Compliant |
