MPM54304GMN-0002 _ Voltage Regulators - DC DC Switching Regulators_Power Management (PMIC)_Integrated Circuits (ICs)

Part Number	MPM54304GMN-0002
Manufacturer	MPS (Monolithic Power Systems)
Other Part Numbers	1589-MPM54304GMN-0002-ND 1589-MPM54304GMN-0002
Description	IC REG BUCK ADJ QUAD 33LGA
Detailed Description	Buck Switching Regulator IC Positive Adjustable 0.55V 4 Output 3A, 3A, 2A, 2A 33-PowerFLGA Module
Manufacturer Standard Lead Time	12 weeks
Datasheet	Datasheet

Category		Integrated Circuits (ICs) Power Management (PMIC) Voltage Regulators - DC DC Switching Regulators
Manufacturer		MPS (Monolithic Power Systems)
Series		MPM
Packaging		Tray
Part Status		Active

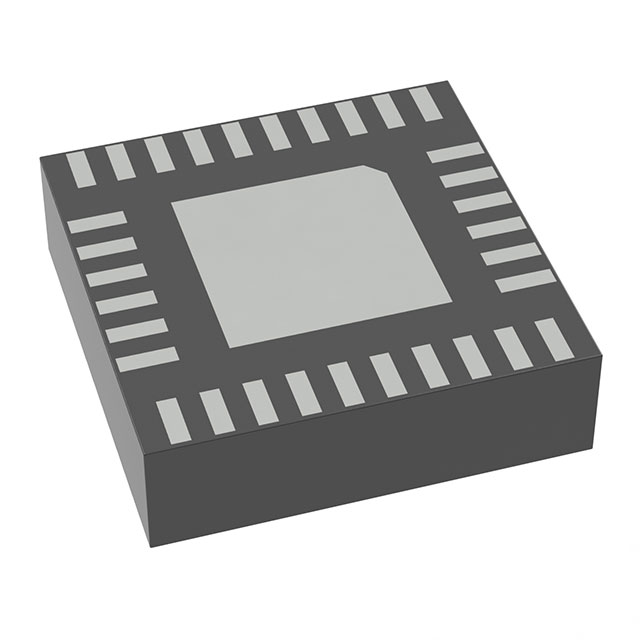

Package / Case		33-PowerFLGA Module
Output Type		Adjustable
Mounting Type		Surface Mount
Number of Outputs		4
Function		Step-Down
Current - Output		3A, 3A, 2A, 2A
Operating Temperature		-40°C ~ 125°C (TJ)
Output Configuration		Positive
Frequency - Switching		500kHz ~ 1.6MHz
Voltage - Input (Max)		16V
Topology		Buck
Supplier Device Package		33-LGA (7x7)
Synchronous Rectifier		Yes
Voltage - Output (Max)		5.4V
Voltage - Input (Min)		4V
Voltage - Output (Min/Fixed)		0.55V

RESOURCE TYPE		LINK
Datasheets		MPM54304GMN-0002
Datasheets		MonolithicPower Systems Environmental Compliance Declaration

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8542.39.0001
Moisture Sensitivity Level (MSL)		3 (168 Hours)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant
