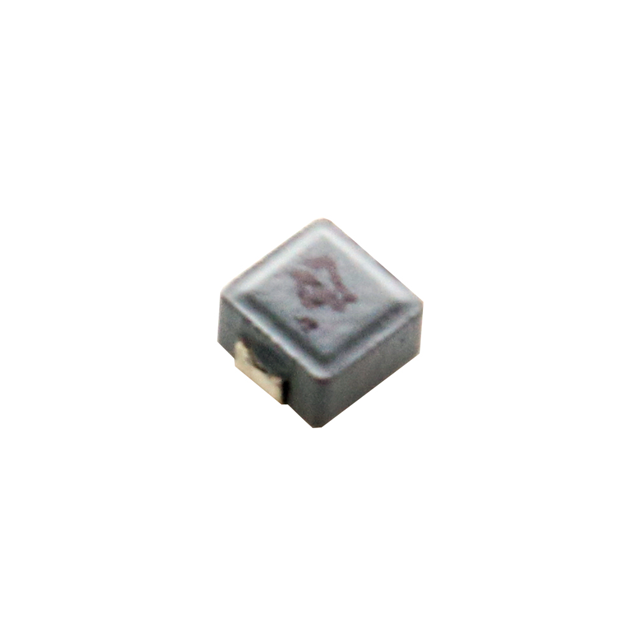

MPL-AY3020-R47

MPL-AY3020-R47

Part Number	MPL-AY3020-R47
Manufacturer	MPS (Monolithic Power Systems)
Other Part Numbers	1589-MPL-AY3020-R47TR-ND 1589-MPL-AY3020-R47CT-ND 1589-MPL-AY3020-R47DKR-ND 1589-MPL-AY3020-R47TR 1589-MPL-AY3020-R47CT 1589-MPL-AY3020-R47DKR
Description	FIXED IND 470NH 6.3A 19.5MOHM SM
Detailed Description	470 nH Unshielded Molded Inductor 6.3 A 19.5mOhm 2-SMD, J-Lead
Manufacturer Standard Lead Time	19 weeks
Datasheet	Datasheet

Product Attributes

Category		Inductors, Coils, Chokes Fixed Inductors
Manufacturer		MPS (Monolithic Power Systems)
Series		MPL-AY
Packaging		Tape & Reel (TR) Cut Tape (CT)
Part Status		Active
Package / Case		2-SMD, J-Lead
Size / Dimension		0.138" L x 0.126" W (3.50mm x 3.20mm)
Mounting Type		Surface Mount
Shielding		Unshielded
Type		Molded
Operating Temperature		-40°C ~ 125°C
DC Resistance (DCR)		19.5mOhm
Current - Saturation (Isat)		9A
Inductance Frequency - Test		100 kHz
Height - Seated (Max)		0.079" (2.00mm)
Inductance		470 nH
Current Rating (Amps)		6.3 A

Documents & Media

RESOURCE TYPE		LINK
Datasheets		MonolithicPower Systems Environmental Compliance Declaration

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8504.50.8000
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant

In Stock: 2830

Can ship immediately.
