MPC8377EVRANG

Part Number
MPC8377EVRANG
Manufacturer Freescale Semiconductor
Other Part Numbers
2156-MPC8377EVRANG-FR-ND
2156-MPC8377EVRANG-FR
FREFREMPC8377EVRANG

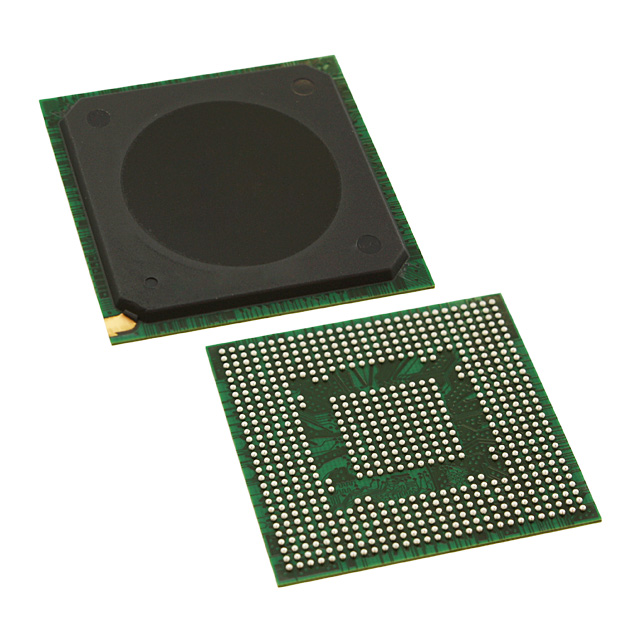

Description IC MPU MPC83XX 800MHZ PBGA689
Detailed Description PowerPC e300c4s Microprocessor IC MPC83xx 1 Core, 32-Bit 800MHz 689-TEPBGA II (31x31)

Product Attributes

Category
Manufacturer Freescale Semiconductor
Series
MPC83xx
Packaging
Tray
Part Status Obsolete
Package / Case 689-BBGA Exposed Pad
Mounting Type Surface Mount
Speed 800MHz
Operating Temperature 0°C ~ 125°C (TA)
Core Processor PowerPC e300c4s
Voltage - I/O 1.8V, 2.5V, 3.3V
Supplier Device Package 689-TEPBGA II (31x31)
Ethernet 10/100/1000Mbps (2)
USB USB 2.0 + PHY (1)
Number of Cores/Bus Width 1 Core, 32-Bit
Co-Processors/DSP Security; SEC 3.0
RAM Controllers DDR, DDR2
Graphics Acceleration No
Security Features Cryptography, Random Number Generator
SATA SATA 3Gbps (2)
Additional Interfaces DUART, I2C, MMC/SD, PCI, SPI

Documents & Media

RESOURCE TYPE LINK

Environmental & Export Classifications

ATTRIBUTE DESCRIPTION
ECCN 5A002A1
HTSUS 8542.31.0001
RoHS Status ROHS3 Compliant

Obsolete

This product is no longer manufactured.
