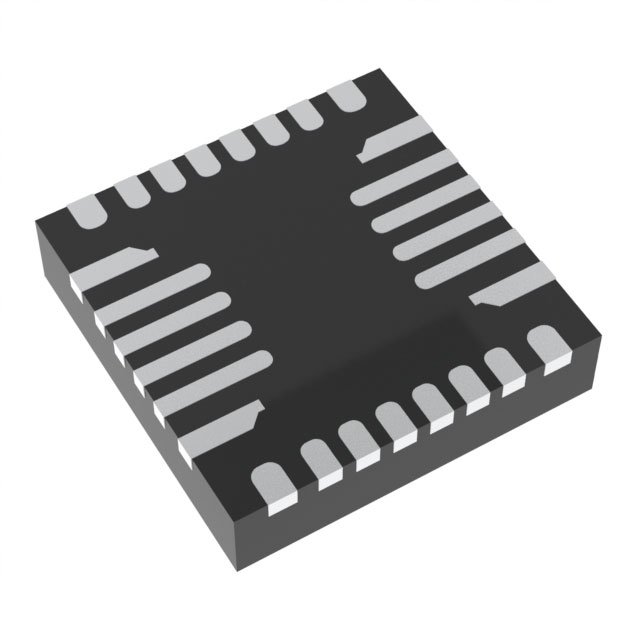

MP5496GR-0001-P

MP5496GR-0001-P

Part Number	MP5496GR-0001-P
Manufacturer	MPS (Monolithic Power Systems)
Other Part Numbers	1589-MP5496GR-0001-PTR-ND 1589-MP5496GR-0001-PCT-ND 1589-MP5496GR-0001-PDKR-ND 1589-MP5496GR-0001-PTR 1589-MP5496GR-0001-PDKR 1589-MP5496GR-0001-PCT
Description	2.8V TO 5.5V, POWER MANAGEMENT I
Detailed Description	PMIC - Voltage Regulators - Linear Switching 9 Output Step-Down (Buck) Synchronous (4), Linear (LDO) (5) 1.5MHz 28-QFN (4x4)
Manufacturer Standard Lead Time	16 weeks
Datasheet	Datasheet

Product Attributes

Category		Integrated Circuits (ICs) Power Management (PMIC) Voltage Regulators - Linear + Switching
Manufacturer		MPS (Monolithic Power Systems)
Series
Packaging		Tape & Reel (TR) Cut Tape (CT)
Part Status		Active
Package / Case		28-VFQFN
Mounting Type		Surface Mount
Operating Temperature		-40°C ~ 125°C (TJ)
Voltage - Supply		2.8V ~ 5.5V
Frequency - Switching		1.5MHz
Topology		Step-Down (Buck) Synchronous (4), Linear (LDO) (5)
Supplier Device Package		28-QFN (4x4)
Voltage/Current - Output 1		Programmable, Programmable, Programmable, 600mV to 2.1875V, 4.5A
Voltage/Current - Output 2		Programmable, Programmable, Programmable, 600mV to 2.1875V, 2.5A
Voltage/Current - Output 3		Programmable, Programmable, Programmable, 600mV to 2.1875V, 4A
w/LED Driver		No
w/Supervisor		No
w/Sequencer		Yes
Number of Outputs		9

Documents & Media

RESOURCE TYPE		LINK
Datasheets		MonolithicPower Systems Environmental Compliance Declaration

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8542.39.0001
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant

In Stock: 978

Can ship immediately.
