MP5120DJ-LF-Z _ Instrumentation, OP Amps, Buffer Amps_Amplifiers_Linear_Integrated Circuits (ICs)

Part Number	MP5120DJ-LF-Z
Manufacturer	MPS (Monolithic Power Systems)
Other Part Numbers	MP5120DJ-LF-Z-ND
Description	IC OPAMP GP 1 CIRCUIT TSOT23-5
Detailed Description	General Purpose Amplifier 1 Circuit Rail-to-Rail TSOT-23-5

Category		Integrated Circuits (ICs) Linear Amplifiers Instrumentation, OP Amps, Buffer Amps
Manufacturer		MPS (Monolithic Power Systems)
Series
Packaging		Tube
Part Status		Active

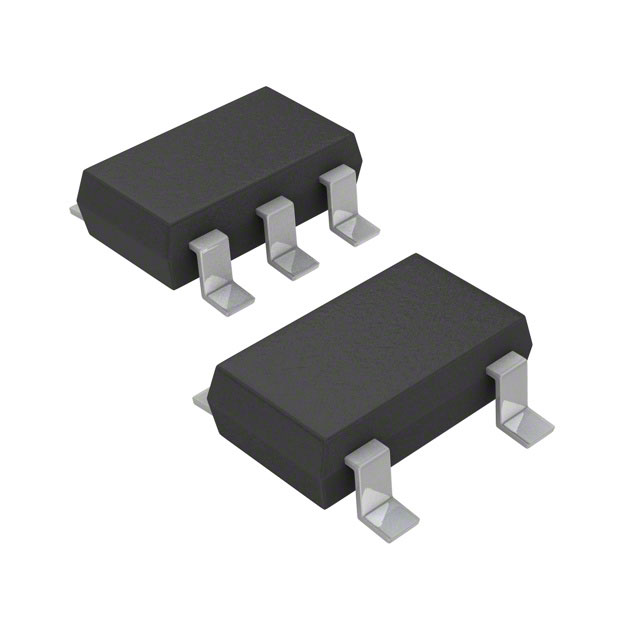

Package / Case		SOT-23-5 Thin, TSOT-23-5
Output Type		Rail-to-Rail
Mounting Type		Surface Mount
Amplifier Type		General Purpose
Operating Temperature		-40°C ~ 85°C
Current - Supply		1.6mA
Slew Rate		45V/µs
Gain Bandwidth Product		14 MHz
Current - Input Bias		500 nA
Voltage - Input Offset		2 mV
Supplier Device Package		TSOT-23-5
Number of Circuits		1
Current - Output / Channel		130 mA
-3db Bandwidth		20 MHz
Voltage - Supply Span (Min)		3.2 V
Voltage - Supply Span (Max)		18 V

RESOURCE TYPE		LINK
Datasheets		MP5120DJ-LF-Z
Datasheets		MonolithicPower Systems Environmental Compliance Declaration

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8542.33.0001
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant
