MP3910GK-Z _ DC DC Switching Controllers_Power Management (PMIC)_Integrated Circuits (ICs)

Part Number	MP3910GK-Z
Manufacturer	MPS (Monolithic Power Systems)
Other Part Numbers	1589-1652-2-ND 1589-1652-1-ND 1589-1652-6-ND 1589-1652-2 1589-1652-1 MP3910GK-Z-ND 1589-1652-6
Description	IC REG CTRLR MULT TOP 10MSOP
Detailed Description	Boost, Flyback, Forward Converter, SEPIC Regulator Positive, Isolation Capable Output Step-Up, Step-Up/Step-Down DC-DC Controller IC 10-MSOP
Manufacturer Standard Lead Time	12 weeks
Datasheet	Datasheet

Category		Integrated Circuits (ICs) Power Management (PMIC) DC DC Switching Controllers
Manufacturer		MPS (Monolithic Power Systems)
Series
Packaging		Tape & Reel (TR) Cut Tape (CT)
Part Status		Active

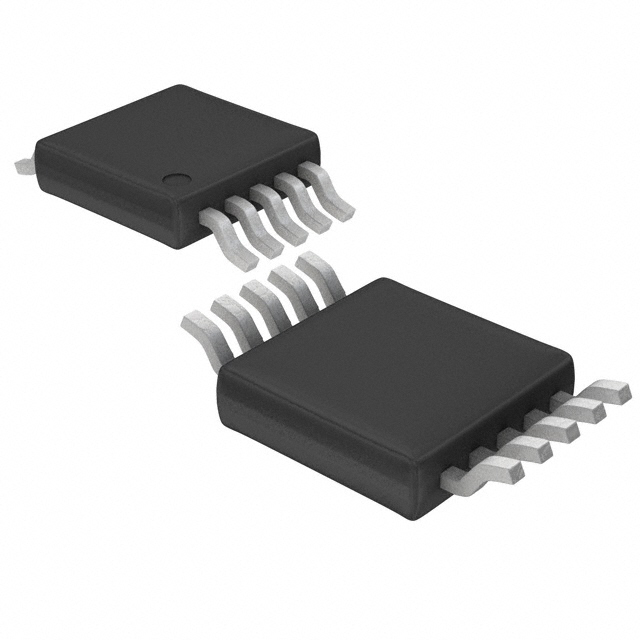

Package / Case		10-TFSOP, 10-MSOP (0.118", 3.00mm Width)
Output Type		Transistor Driver
Mounting Type		Surface Mount
Function		Step-Up, Step-Up/Step-Down
Operating Temperature		-40°C ~ 125°C (TJ)
Output Configuration		Positive, Isolation Capable
Frequency - Switching		30kHz ~ 400kHz
Topology		Boost, Flyback, Forward Converter, SEPIC
Voltage - Supply (Vcc/Vdd)		7V ~ 35V
Supplier Device Package		10-MSOP
Synchronous Rectifier		No
Control Features		Enable, Frequency Control, Soft Start
Output Phases		1
Duty Cycle (Max)		95%
Clock Sync		Yes
Number of Outputs		1

RESOURCE TYPE		LINK
Datasheets		MP3910GK-Z
Datasheets		MonolithicPower Systems Environmental Compliance Declaration

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8542.39.0001
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant
