MP1909GTL-P _ Gate Drivers_Power Management (PMIC)_Integrated Circuits (ICs)

Part Number	MP1909GTL-P
Manufacturer	MPS (Monolithic Power Systems)
Other Part Numbers	1589-MP1909GTL-PTR-ND 1589-MP1909GTL-PCT-ND 1589-MP1909GTL-PDKR-ND 1589-MP1909GTL-PTR 1589-MP1909GTL-PCT 1589-MP1909GTL-PDKR
Description	30V, 2.2MHZ, 2A HALF-BRIDGE GATE
Detailed Description	Half-Bridge Gate Driver IC Non-Inverting SOT-583
Manufacturer Standard Lead Time	16 weeks
Datasheet	Datasheet

Category		Integrated Circuits (ICs) Power Management (PMIC) Gate Drivers
Manufacturer		MPS (Monolithic Power Systems)
Series
Packaging		Tape & Reel (TR) Cut Tape (CT)
Part Status		Active

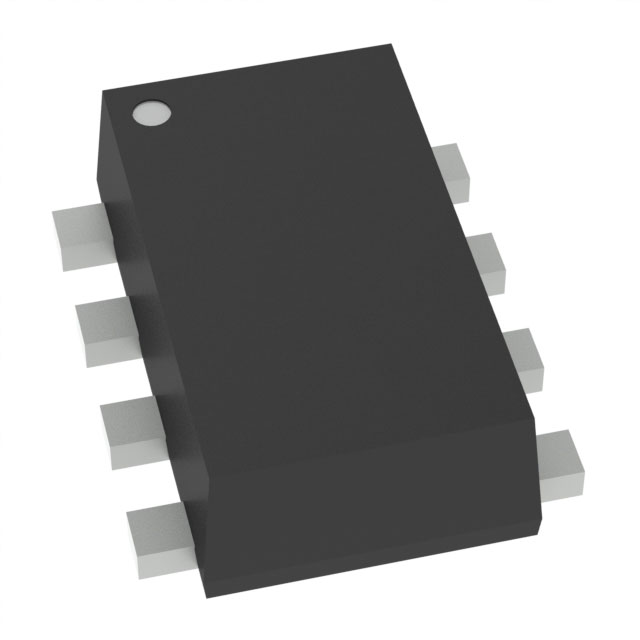

Package / Case		SOT-583
Mounting Type		Surface Mount
Operating Temperature		-40°C ~ 125°C (TJ)
Voltage - Supply		4.5V ~ 12V
Input Type		Non-Inverting
High Side Voltage - Max (Bootstrap)		50 V
Supplier Device Package		SOT-583
Rise / Fall Time (Typ)		10ns, 6ns
Channel Type		Synchronous
Driven Configuration		Half-Bridge
Number of Drivers		2
Gate Type		N-Channel MOSFET
Logic Voltage - VIL, VIH		0.8V, 2.2 V
Current - Peak Output (Source, Sink)		2A, 4A
DigiKey Programmable		Not Verified

RESOURCE TYPE		LINK
Datasheets		MonolithicPower Systems Environmental Compliance Declaration

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8542.39.0001
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant
