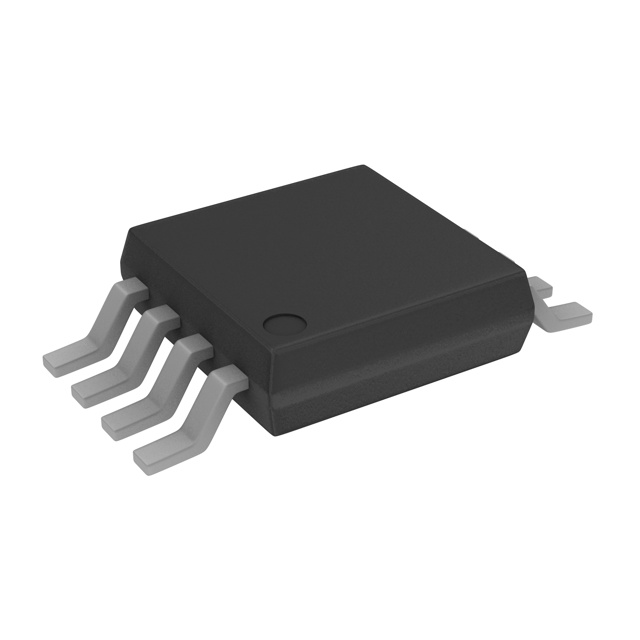

MP1528DK-LF-P

MP1528DK-LF-P

Part Number	MP1528DK-LF-P
Manufacturer	MPS (Monolithic Power Systems)
Other Part Numbers	1589-1038-2-ND 1589-1038-1-ND 1589-1038-6-ND 1589-1038-1 1589-1038-2 1589-1038-6
Description	IC LED DRV RGLTR PWM 950MA 8MSOP
Detailed Description	LED Driver IC 1 Output DC DC Regulator Step-Up (Boost) Analog, PWM Dimming 950mA (Switch) 8-MSOP

Product Attributes

Category		Integrated Circuits (ICs) Power Management (PMIC) LED Drivers
Manufacturer		MPS (Monolithic Power Systems)
Series
Packaging		Tape & Reel (TR) Cut Tape (CT)
Part Status		Active
Package / Case		8-TSSOP, 8-MSOP (0.118", 3.00mm Width)
Voltage - Output		36V
Mounting Type		Surface Mount
Number of Outputs		1
Type		DC DC Regulator
Operating Temperature		-40°C ~ 85°C (TA)
Applications		Backlight
Current - Output / Channel		950mA (Switch)
Internal Switch(s)		Yes
Topology		Step-Up (Boost)
Supplier Device Package		8-MSOP
Dimming		Analog, PWM
Voltage - Supply (Min)		2.7V
Voltage - Supply (Max)		36V

Documents & Media

RESOURCE TYPE		LINK
Datasheets		MP1528DK-LF-P
Datasheets		MonolithicPower Systems Environmental Compliance Declaration
Datasheets		Tube Pkg Retraction 15/Mar/2019

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8542.39.0001
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant
