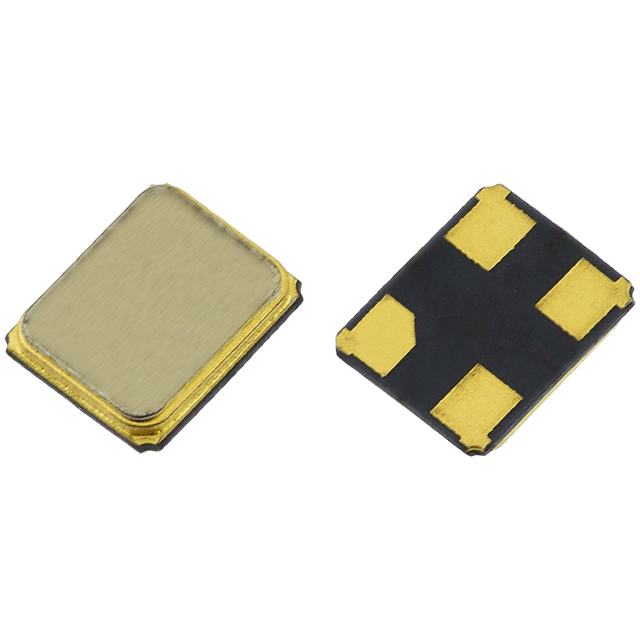

MP11657

MP11657

Part Number	MP11657
Manufacturer	Golledge Electronics Ltd
Other Part Numbers	5254-MP11657TR-ND 5254-MP11657CT-ND 5254-MP11657DKR-ND 5254-MP11657DKR 5254-MP11657TR 5254-MP11657-ND 4635-MP11657-ND 5254-MP11657 4635-MP11657 5254-MP11657CT
Description	76.80 MHz GSX-223/1P4AF SM Cryst
Detailed Description	76.8 MHz ±15ppm Crystal 10pF 30 Ohms 4-SMD, No Lead
Manufacturer Standard Lead Time	8 weeks
Datasheet	Datasheet

Product Attributes

Category		Crystals, Oscillators, Resonators Crystals
Manufacturer		Golledge Electronics Ltd
Series		GSX-223
Packaging		Tape & Reel (TR) Cut Tape (CT)
Part Status		Active
Package / Case		4-SMD, No Lead
Load Capacitance		10pF
Size / Dimension		0.081" L x 0.065" W (2.05mm x 1.65mm)
Mounting Type		Surface Mount
Type		MHz Crystal
Operating Temperature		-40°C ~ 85°C
Frequency Stability		±10ppm
Frequency Tolerance		±15ppm
Operating Mode		Fundamental
Height - Seated (Max)		0.020" (0.50mm)
ESR (Equivalent Series Resistance)		30 Ohms
Frequency		76.8 MHz

Documents & Media

RESOURCE TYPE		LINK
Datasheets		MP11657

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		RoHS Compliant

In Stock: 100

Can ship immediately.
