Part Number |
MOT-I-81610-157
|
---|---|
Manufacturer | ISL Products International |
Other Part Numbers |
2685-MOT-I-81610-157-ND
2685-MOT-I-81610-157
|

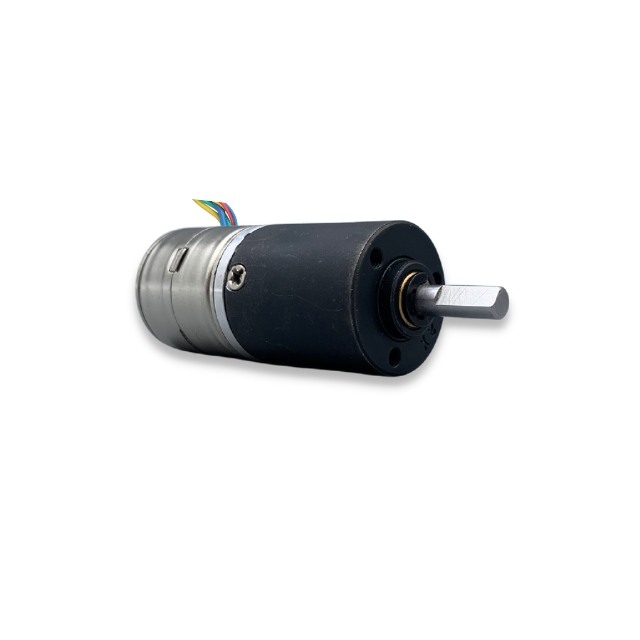

Description | PM Stepper Motor w/ Gearbox |
Detailed Description | Bipolar Stepper Motor Permanent Magnet Frame Size 3130.5 Step 12VDC |
Datasheet | Datasheet |
Category | ||
---|---|---|
Manufacturer | ISL Products International | |
Series | ||
Packaging |
Bag
|
|
Part Status | Active | |
Voltage - Rated | 12VDC | |
Size / Dimension | Round - 0.787" Dia (20.00mm) | |
Type | Permanent Magnet | |
Operating Temperature | -10°C ~ 55°C | |
Termination Style | Connector | |
Step Angle | 0.115° | |
Torque - Holding (oz-in / mNm) | 55.54 / 392.26 | |
Coil Type | Bipolar | |
Diameter - Shaft | 0.157" (4.00mm) | |
Mounting Hole Spacing | 0.591" (15.00mm) | |
Length - Shaft and Bearing | 0.551" (14.00mm) | |
Steps per Revolution | 3130.5 |
RESOURCE TYPE | LINK | |
---|---|---|
Datasheets | MOT-I-81610-157 |
ATTRIBUTE | DESCRIPTION | |
---|---|---|
HTSUS | 8501.10.4060 | |
RoHS Status | RoHS Compliant |
