Part Number |
MOP-AL202C-BYFY-25E-3IN
|
---|---|
Manufacturer | Matrix Orbital |
Other Part Numbers |
635-1207-ND
635-1207
Q4189269
MOP-AL202C-BYFY-25E-3IN-ND
|

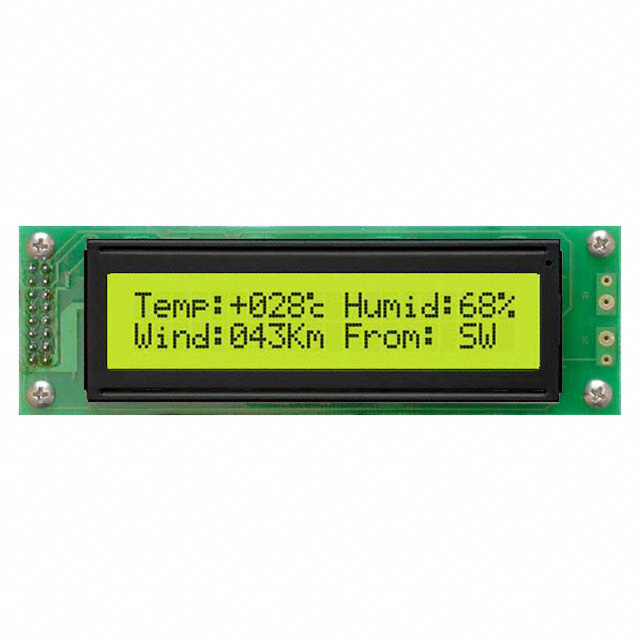

Description | LCD MOD 40DIG 20X2 TRANS YLW/GRN |
Detailed Description | Character Display Module Transflective 5 x 8 Dots STN - Super-Twisted Nematic LED - Yellow/Green Parallel 116.00mm x 37.00mm x 14.50mm |
Manufacturer Standard Lead Time | 7 weeks |
Datasheet | Datasheet |
Category | ||
---|---|---|
Manufacturer | Matrix Orbital | |
Series | ||
Packaging |
Bulk
|
|
Part Status | Active | |
Display Type | STN - Super-Twisted Nematic | |
Display Mode | Transflective | |
Backlight | LED - Yellow/Green | |
Interface | Parallel | |
Operating Temperature | -20°C ~ 70°C | |
Voltage - Supply | 4.5V ~ 5.5V | |
Viewing Area | 83.00mm L x 18.60mm W | |
Character Size | 5.55mm H x 3.20mm W | |
Display Format | 20 x 2 | |
Character Format | 5 x 8 Dots | |
Dot Size | 0.60mm W x 0.65mm H | |
Outline L x W x H | 116.00mm x 37.00mm x 14.50mm | |
Text Color | Gray | |
Background Color | Green | |
Number of Characters | 40.0 |
RESOURCE TYPE | LINK | |
---|---|---|
Datasheets | MOP-AL202C-BYFY-25E-3IN | |
Datasheets | HD44780U Driver Manual |
ATTRIBUTE | DESCRIPTION | |
---|---|---|
ECCN | EAR99 | |
HTSUS | 8531.20.0020 | |
Moisture Sensitivity Level (MSL) | 1 (Unlimited) | |
REACH Status | REACH Unaffected | |
RoHS Status | ROHS3 Compliant |
