MOC3012 _ Triac, SCR Output Optoisolators_Optoisolators_Isolators

Part Number	MOC3012
Manufacturer	Texas Instruments
Other Part Numbers	2156-MOC3012-ND 2156-MOC3012 TEXTISMOC3012
Description	TRIAC OUTPUT OPTOCOUPLER
Detailed Description	Optoisolator Triac Output 7500Vpk 1 Channel 6-PDIP

Category		Isolators Optoisolators Triac, SCR Output Optoisolators
Manufacturer		Texas Instruments
Series
Packaging		Bulk
Part Status		Active

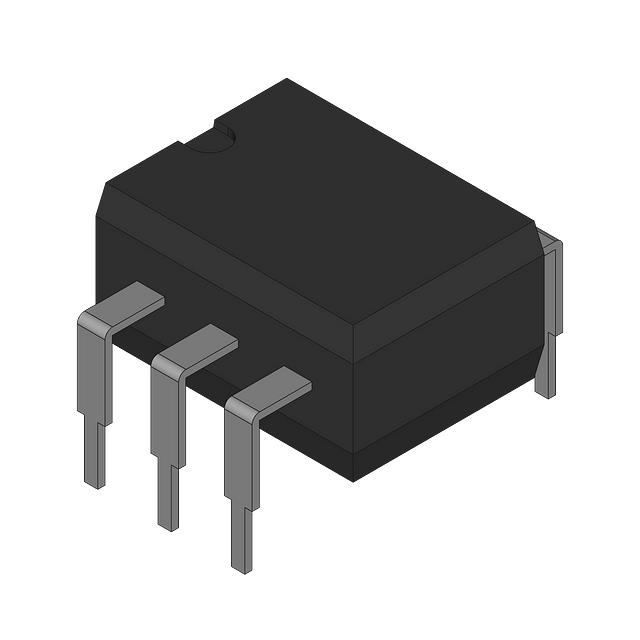

Package / Case		6-DIP (0.300", 7.62mm)
Output Type		Triac
Mounting Type		Through Hole
Operating Temperature		-40°C ~ 100°C
Voltage - Forward (Vf) (Typ)		1.2V
Voltage - Isolation		7500Vpk
Approval Agency		UL
Current - Hold (Ih)		100µA
Supplier Device Package		6-PDIP
Zero Crossing Circuit		No
Static dV/dt (Min)		12V/µs
Current - LED Trigger (Ift) (Max)		5mA
Number of Channels		1
Current - On State (It (RMS)) (Max)		100 mA
Voltage - Off State		250 V
Current - DC Forward (If) (Max)		50 mA

RESOURCE TYPE		LINK

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8541.49.8000
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Affected
RoHS Status		RoHS non-compliant
