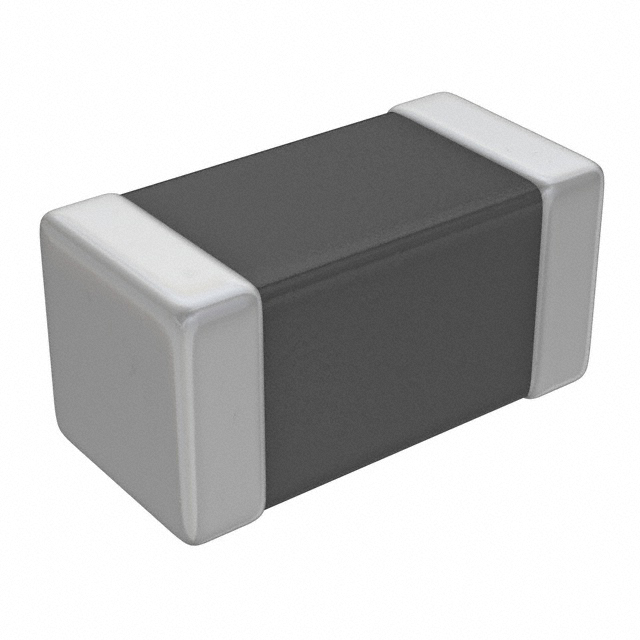

MMZ1608Y121BTA00

MMZ1608Y121BTA00

Part Number	MMZ1608Y121BTA00
Manufacturer	TDK Corporation
Other Part Numbers	445-MMZ1608Y121BTA00TR-ND 445-MMZ1608Y121BTA00CT-ND 445-MMZ1608Y121BTA00DKR-ND 445-2176-1-ND MMZ1608Y121B-ND 445-MMZ1608Y121BTA00CT 445-2176-2-ND 445-2176-6 445-MMZ1608Y121BTA00TR 445-2176-1 445-2176-2 445-MMZ1608Y121BTA00DKR MMZ1608Y121B 445-2176-6-ND
Description	FERRITE BEAD 120 OHM 0603 1LN
Detailed Description	120 Ohms @ 100 MHz 1 Signal Line Ferrite Bead 0603 (1608 Metric) 500mA 200mOhm
Manufacturer Standard Lead Time	15 weeks
Datasheet	Datasheet

Product Attributes

Category		Filters Ferrite Beads and Chips
Manufacturer		TDK Corporation
Series		MMZ
Packaging		Tape & Reel (TR) Cut Tape (CT)
Part Status		Active
Package / Case		0603 (1608 Metric)
Filter Type		Signal Line

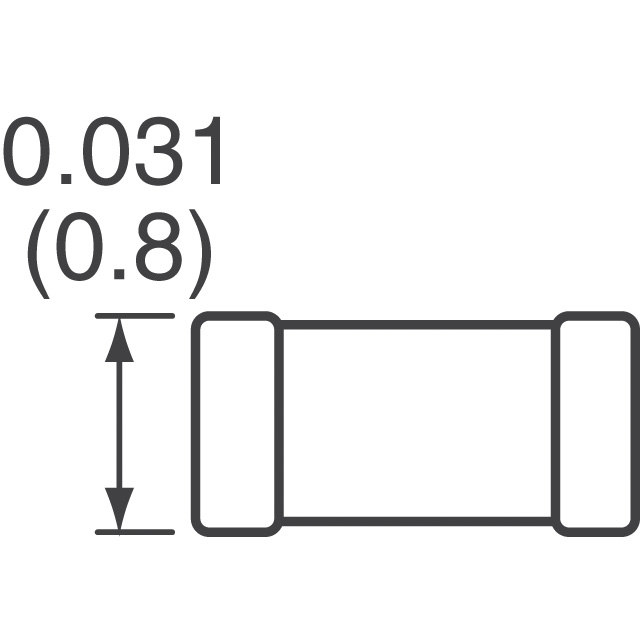

Size / Dimension		0.063" L x 0.032" W (1.60mm x 0.80mm)
Mounting Type		Surface Mount
Operating Temperature		-55°C ~ 125°C
Height (Max)		0.037" (0.95mm)
Current Rating (Max)		500mA
DC Resistance (DCR) (Max)		200mOhm
Number of Lines		1
Impedance @ Frequency		120 Ohms @ 100 MHz

Documents & Media

RESOURCE TYPE		LINK
Datasheets		MMZ1608Y121BTA00
Datasheets		MMZ Series Brief
Datasheets		MMZ,MPS Series Oct/2014
Datasheets		Mult Devs Allocation 22/Aug/2022
Datasheets		(MMZ,MPZ)1608 Series Footprint
Datasheets		(MMZ,MPZ)1608 Series Top
Datasheets		(MMZ,MPZ)1608 Series_0.8mm Thickness Side

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8548.00.0000
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant

In Stock: 38223

Can ship immediately.
