MMZ1005A152ET000

MMZ1005A152ET000

Part Number	MMZ1005A152ET000
Manufacturer	TDK Corporation
Other Part Numbers	445-6403-2-ND 445-6403-1-ND 445-6403-6-ND 445-6403-6 MMZ1005A152E 445-6403-1 445-6403-2
Description	FERRITE BEAD 1.5K OHM 0402 1LN
Detailed Description	1.5 kOhms @ 100 MHz 1 Signal Line Ferrite Bead 0402 (1005 Metric) 230mA 1.6Ohm
Manufacturer Standard Lead Time	10 weeks
Datasheet	Datasheet

Product Attributes

Category		Filters Ferrite Beads and Chips
Manufacturer		TDK Corporation
Series		MMZ-E
Packaging		Tape & Reel (TR) Cut Tape (CT)
Part Status		Active
Package / Case		0402 (1005 Metric)
Filter Type		Signal Line
Size / Dimension		0.039" L x 0.020" W (1.00mm x 0.50mm)
Mounting Type		Surface Mount
Operating Temperature		-55°C ~ 125°C
Height (Max)		0.022" (0.55mm)
Current Rating (Max)		230mA
DC Resistance (DCR) (Max)		1.6Ohm
Number of Lines		1
Impedance @ Frequency		1.5 kOhms @ 100 MHz

Documents & Media

RESOURCE TYPE		LINK
Datasheets		MMZ1005A152ET000
Datasheets		MMZ-E Series Brief
Datasheets		MMZ,MPS Series Oct/2014

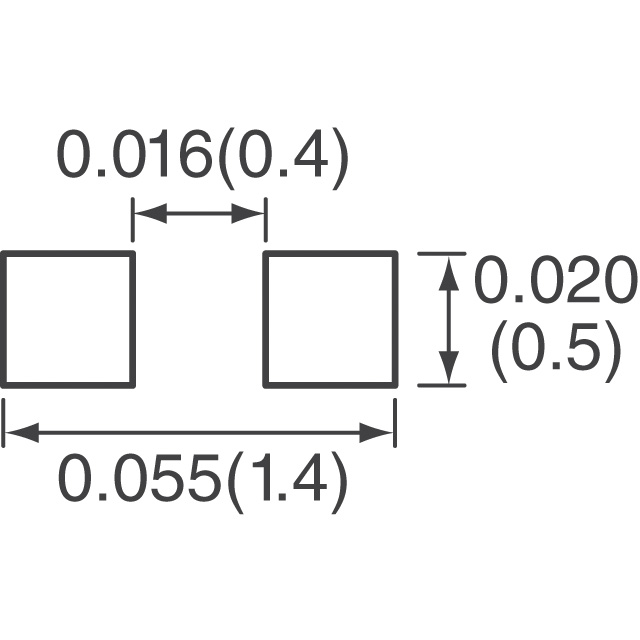

Datasheets		(MMZ,MPZ)1005 Series Footprint
Datasheets		(MMZ,MPZ)1005 Series Side
Datasheets		(MMZ,MPZ)1005 Series Top

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8548.00.0000
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant

In Stock: 55980

Can ship immediately.
