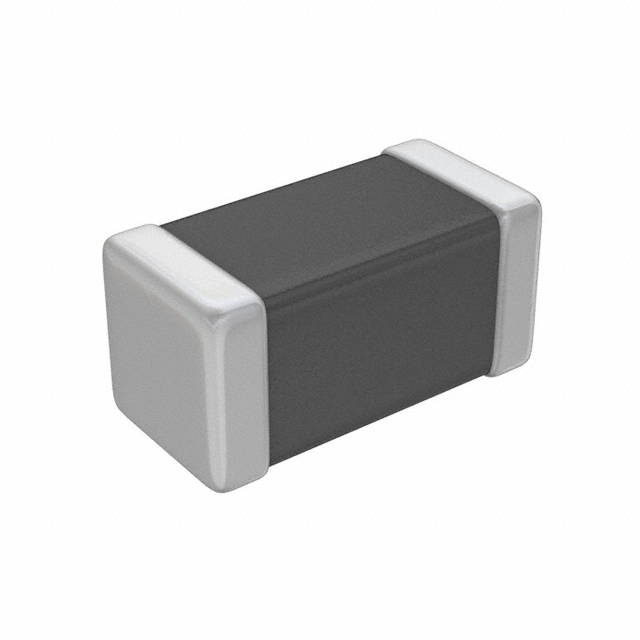

MMZ0603F560ET000

MMZ0603F560ET000

Part Number	MMZ0603F560ET000
Manufacturer	TDK Corporation
Other Part Numbers	445-172707-2-ND 445-172707-1-ND 445-172707-6-ND 445-172707-6 445-172707-1 445-172707-2
Description	FERRITE BEAD 56 OHM 0201 1LN
Detailed Description	56 Ohms @ 100 MHz 1 Signal Line Ferrite Bead 0201 (0603 Metric) 150mA 1.9Ohm
Manufacturer Standard Lead Time	10 weeks
Datasheet	Datasheet

Product Attributes

Category		Filters Ferrite Beads and Chips
Manufacturer		TDK Corporation
Series		MMZ-E
Packaging		Tape & Reel (TR) Cut Tape (CT)
Part Status		Active
Package / Case		0201 (0603 Metric)
Filter Type		Signal Line
Size / Dimension		0.024" L x 0.012" W (0.60mm x 0.30mm)
Mounting Type		Surface Mount
Operating Temperature		-55°C ~ 125°C
Height (Max)		0.013" (0.33mm)
Current Rating (Max)		150mA
DC Resistance (DCR) (Max)		1.9Ohm
Number of Lines		1
Impedance @ Frequency		56 Ohms @ 100 MHz

Documents & Media

RESOURCE TYPE		LINK
Datasheets		MMZ0603F560ET000

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8548.00.0000
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant

In Stock: 13641

Can ship immediately.
