MMSZ5223BT1G

Part Number
MMSZ5223BT1G
Manufacturer Sanyo Semiconductor/onsemi
Other Part Numbers
MMSZ5223BT1GOSTR-ND
MMSZ5223BT1GOSCT-ND
MMSZ5223BT1GOSDKR-ND
MMSZ5223BT1GOS-ND
3937-MMSZ5223BT1G
MMSZ5223BT1GOSCT
MMSZ5223BT1GOSTR
MMSZ5223BT1GOSDKR
MMSZ5223BT1GOS
2156-MMSZ5223BT1G-OS
ONSONSMMSZ5223BT1G
Description DIODE ZENER 2.7V 500MW SOD123

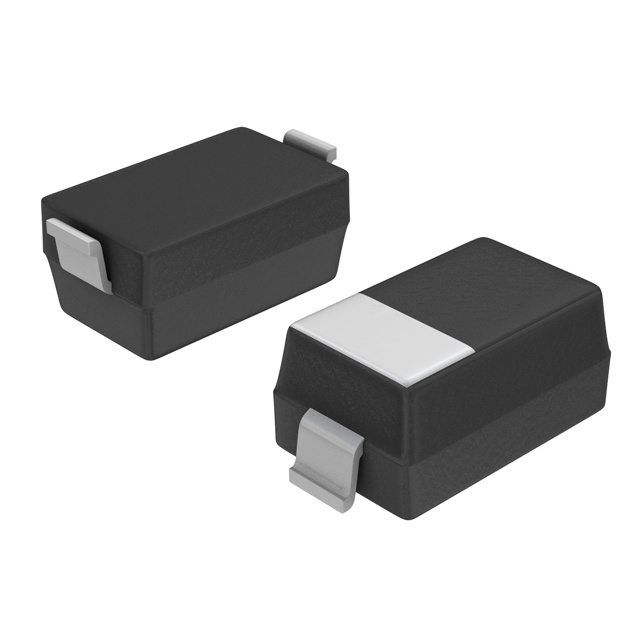

Detailed Description Zener Diode 2.7 V 500 mW ±5% Surface Mount SOD-123
Manufacturer Standard Lead Time 9 weeks
Datasheet Datasheet

Product Attributes

Category
Manufacturer Sanyo Semiconductor/onsemi
Series
MMSZ52xxxT1G
Packaging
Tape & Reel (TR)
Cut Tape (CT)
Part Status Active
Tolerance ±5%
Package / Case SOD-123
Mounting Type Surface Mount
Operating Temperature -55°C ~ 150°C
Voltage - Zener (Nom) (Vz) 2.7 V
Impedance (Max) (Zzt) 30 Ohms
Supplier Device Package SOD-123
Power - Max 500 mW
Voltage - Forward (Vf) (Max) @ If 900 mV @ 10 mA
Current - Reverse Leakage @ Vr 75 µA @ 1 V

Documents & Media

Environmental & Export Classifications

ATTRIBUTE DESCRIPTION
ECCN EAR99
HTSUS 8541.10.0050
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH Unaffected
RoHS Status ROHS3 Compliant

In Stock: 235478

Can ship immediately.
