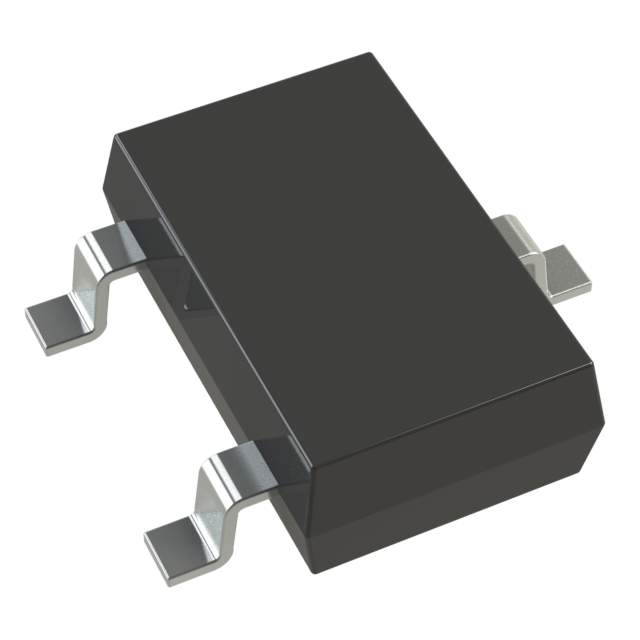

MMBZ5253BLT1G

MMBZ5253BLT1G

Part Number
MMBZ5253BLT1G
Manufacturer Sanyo Semiconductor/onsemi
Other Part Numbers
MMBZ5253BLT1GOSTR-ND
MMBZ5253BLT1GOSCT-ND
MMBZ5253BLT1GOSDKR-ND
MMBZ5253BLT1GOSCT
ONSONSMMBZ5253BLT1G
MMBZ5253BLT1GOSDKR
2156-MMBZ5253BLT1G-OS
MMBZ5253BLT1GOS
MMBZ5253BLT1GOSTR
MMBZ5253BLT1GOS-ND
Description DIODE ZENER 25V 225MW SOT23-3
Detailed Description Zener Diode 25 V 225 mW ±5% Surface Mount SOT-23-3 (TO-236)
Manufacturer Standard Lead Time 6 weeks
Datasheet Datasheet

Product Attributes

Category
Manufacturer Sanyo Semiconductor/onsemi
Series
Packaging
Tape & Reel (TR)
Cut Tape (CT)
Part Status Active
Tolerance ±5%
Package / Case TO-236-3, SC-59, SOT-23-3
Mounting Type Surface Mount
Operating Temperature -65°C ~ 150°C
Voltage - Zener (Nom) (Vz) 25 V
Impedance (Max) (Zzt) 35 Ohms
Supplier Device Package SOT-23-3 (TO-236)
Power - Max 225 mW
Voltage - Forward (Vf) (Max) @ If 900 mV @ 10 mA
Current - Reverse Leakage @ Vr 100 nA @ 19 V

Documents & Media

RESOURCE TYPE LINK
Datasheets MMBZ5253BLT1G
Datasheets onsemi RoHS
Datasheets Material Declaration MMBZ5253BLT1G
Datasheets MC10H171FN(G),MMBZ5253(B,E)LT1G Update 03/Feb/2011
Datasheets SOT23 16/Sep/2016
Datasheets Glue Mount Process 11/July/2008
Datasheets Mult Dev Mold Comp Chg 7/Apr/2020

Environmental & Export Classifications

ATTRIBUTE DESCRIPTION
ECCN EAR99
HTSUS 8541.10.0050
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH Unaffected
RoHS Status ROHS3 Compliant

In Stock: 14960

Can ship immediately.
