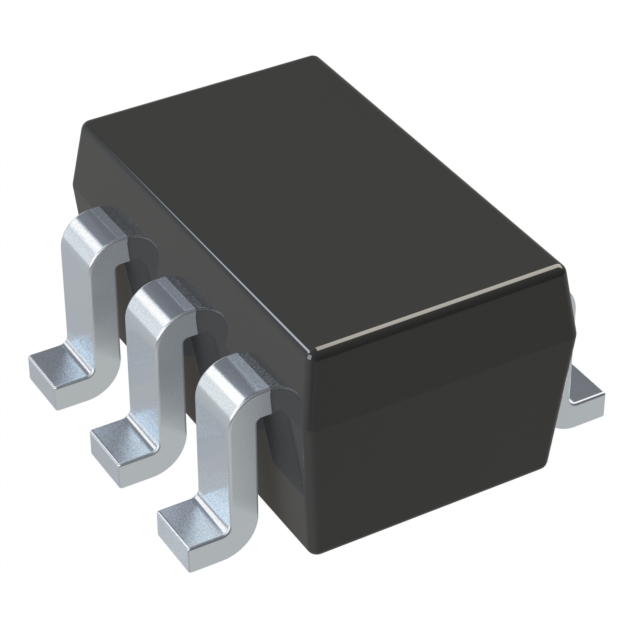

MMBZ5232BTS-7-F

MMBZ5232BTS-7-F

Part Number	MMBZ5232BTS-7-F
Manufacturer	Zetex Semiconductors (Diodes Inc.)
Other Part Numbers	MMBZ5232BTS-7-F-ND
Description	DIODE ZENER ARRAY 5.6V SOT363
Detailed Description	Zener Diode Array 3 Independent 5.6 V 200 mW ±5% SOT-363
Manufacturer Standard Lead Time	8 weeks
Datasheet	Datasheet

Product Attributes

Category		Discrete Semiconductor Products Diodes Zener Zener Diode Arrays
Manufacturer		Zetex Semiconductors (Diodes Inc.)
Series
Packaging		Tape & Reel (TR)
Part Status		Active
Tolerance		±5%
Package / Case		6-TSSOP, SC-88, SOT-363
Mounting Type		Surface Mount
Configuration		3 Independent
Operating Temperature		-65°C ~ 150°C
Voltage - Zener (Nom) (Vz)		5.6 V
Impedance (Max) (Zzt)		11 Ohms
Supplier Device Package		SOT-363
Power - Max		200 mW
Voltage - Forward (Vf) (Max) @ If		900 mV @ 10 mA
Current - Reverse Leakage @ Vr		5 µA @ 3 V

Documents & Media

RESOURCE TYPE		LINK
Datasheets		MMBZ5232BTS-7-F
Datasheets		Diodes Environmental Compliance Cert
Datasheets		Green Encapsulate Change 09/July/2007
Datasheets		Mult Dev Assembly Chgs 5/May/2020

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8541.10.0050
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant
