MLX90380LGO-BAB-125-RE

Part Number
MLX90380LGO-BAB-125-RE
Manufacturer Melexis
Other Part Numbers
413-MLX90380LGO-BAB-125-RETR-ND
413-MLX90380LGO-BAB-125-RECT-ND
413-MLX90380LGO-BAB-125-REDKR-ND
413-MLX90380LGO-BAB-125-RECT
413-MLX90380LGO-BAB-125-RETR
413-MLX90380LGO-BAB-125-REDKR
Description SENSOR RESOLVER ANLG 2CH 16TSSOP
Detailed Description Hall Effect Sensor Rotary Position External Magnet, Not Included Gull Wing
Manufacturer Standard Lead Time 27 weeks
Datasheet Datasheet

Product Attributes

Category
Manufacturer Melexis
Series
Triaxis®
Packaging
Tape & Reel (TR)
Cut Tape (CT)
Part Status Active

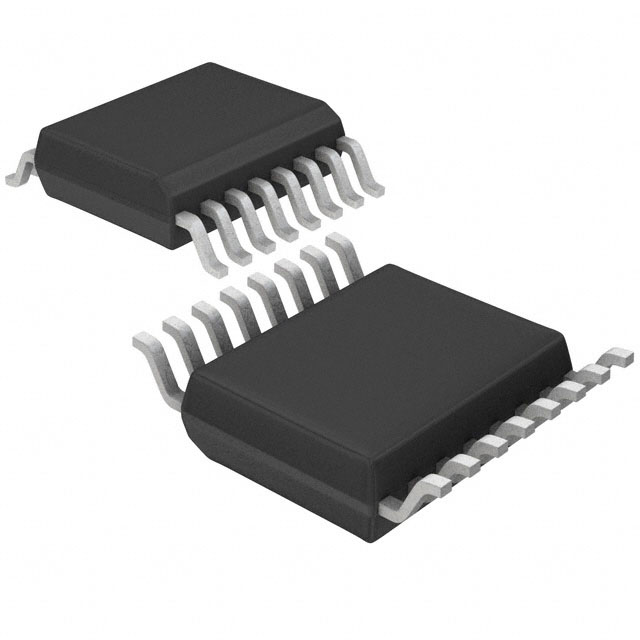

Package / Case 16-TSSOP (0.173", 4.40mm Width)
Mounting Type Surface Mount
Output Analog Voltage
Operating Temperature -40°C ~ 150°C
Termination Style Gull Wing
Voltage - Supply 4.5V ~ 5.5V
Linearity ±1.5%
Actuator Type External Magnet, Not Included
Technology Hall Effect
For Measuring Rotary Position
Supplier Device Package 16-TSSOP
Rotation Angle - Electrical, Mechanical 0° ~ 360°
Output Signal Cosine, Sine

Documents & Media

RESOURCE TYPE LINK
Datasheets MLX90380LGO-BAB-125-RE

Environmental & Export Classifications

ATTRIBUTE DESCRIPTION
Moisture Sensitivity Level (MSL) 3 (168 Hours)
REACH Status REACH Unaffected
RoHS Status ROHS3 Compliant
