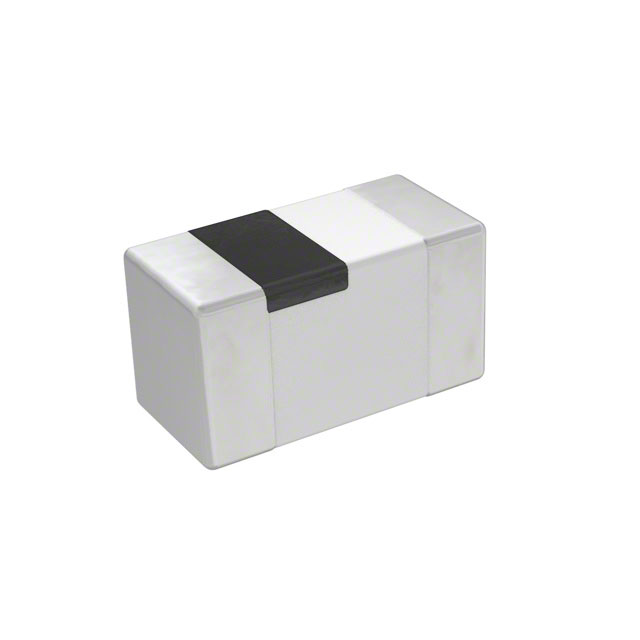

MLG1005SR10JT000 _ Fixed Inductors_Inductors, Coils, Chokes

Part Number	MLG1005SR10JT000
Manufacturer	TDK Corporation
Other Part Numbers	445-3071-2-ND 445-3071-1-ND 445-3071-6-ND MLG1005SR10JT 445-3071-6 MLG1005SR10J 445-3071-2 445-3071-1
Description	FIXED IND 100NH 200MA 2 OHM SMD
Detailed Description	100 nH Unshielded Multilayer Inductor 200 mA 2Ohm Max 0402 (1005 Metric)
Manufacturer Standard Lead Time	12 weeks
Datasheet	Datasheet

Category		Inductors, Coils, Chokes Fixed Inductors
Manufacturer		TDK Corporation
Series		MLG
Packaging		Tape & Reel (TR) Cut Tape (CT)
Part Status		Active
Tolerance		±5%
Package / Case		0402 (1005 Metric)
Size / Dimension		0.039" L x 0.020" W (1.00mm x 0.50mm)
Mounting Type		Surface Mount
Shielding		Unshielded
Type		Multilayer
Operating Temperature		-55°C ~ 125°C
DC Resistance (DCR)		2Ohm Max
Q @ Freq		8 @ 100MHz
Frequency - Self Resonant		700MHz
Material - Core		Ceramic, Non-Magnetic
Inductance Frequency - Test		100 MHz
Supplier Device Package		0402 (1005 Metric)
Height - Seated (Max)		0.022" (0.55mm)
Inductance		100 nH
Current Rating (Amps)		200 mA

RESOURCE TYPE		LINK
Datasheets		MLG1005SR10JT000
Datasheets		Multilayer Inductor Part Number Change 2014
Datasheets		1005 (0402) Footprint

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8504.50.8000
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant
