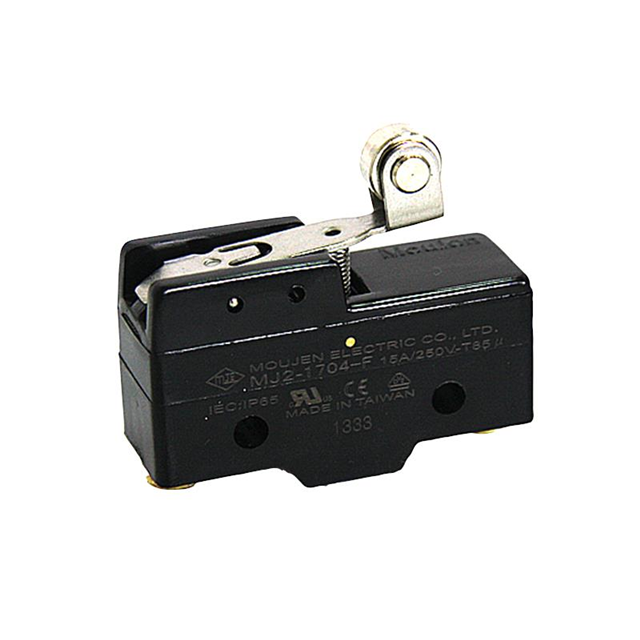

MJ2-1724 PH-20

MJ2-1724 PH-20

Part Number	MJ2-1724 PH-20
Manufacturer	Moujen
Other Part Numbers	3453-MJ2-1724PH-20-ND 3453-MJ2-1704F-20-ND 3453-MJ2-1724PH-20 MJ2-1704F-20 3453-MJ2-1704F-20
Description	SWITCH SNAP ACTION SPDT 20A 250V
Detailed Description	Switch SPDT Chassis Mount

Product Attributes

Category		Switches Limit Switches
Manufacturer		Moujen
Series		MJ2
Packaging		Retail Package
Part Status		Active
Features		Metal Roller
Current Rating (Amps)		20A (AC), 500mA (DC)
Mounting Type		Chassis Mount
Circuit		SPDT
Switch Function		On-Mom
Operating Temperature		-25°C ~ 80°C
Termination Style		Screw Terminal
Actuator Type		Lever, Roller
Operating Force		160gf
Ingress Protection		IP40
Release Force		42gf
Pretravel		0.138" (3.5mm)
Differential Travel		0.020" (0.5mm)
Overtravel		0.094" (2.4mm)
Voltage Rating - AC		250 V
Voltage Rating - DC		125 V

Documents & Media

RESOURCE TYPE		LINK

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
Moisture Sensitivity Level (MSL)		Not Applicable
REACH Status		Vendor Undefined
RoHS Status		ROHS3 Compliant
