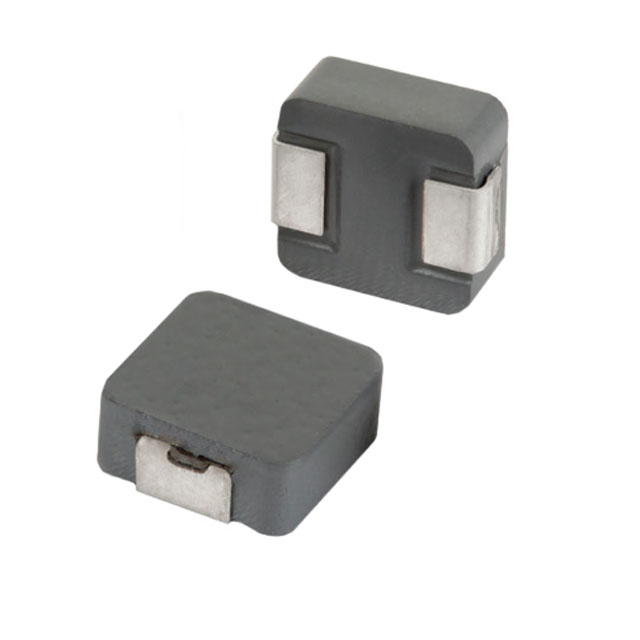

MGV12071R0M-10

MGV12071R0M-10

Part Number	MGV12071R0M-10
Manufacturer	Laird-Signal Integrity Products
Other Part Numbers	240-2852-2-ND 240-2852-1-ND 240-2852-6-ND 240-2852DKR 240-2852-6 240-2852-2 240-2852-1 240-2852TR-ND 240-2852CT-ND 240-2852CT 240-2852DKR-ND 240-2852TR
Description	FIXED IND 1UH 32A 2 MOHM SMD
Detailed Description	1 µH Shielded Molded Inductor 32 A 2mOhm Max Nonstandard
Manufacturer Standard Lead Time	11 weeks
Datasheet	Datasheet

Product Attributes

Category		Inductors, Coils, Chokes Fixed Inductors
Manufacturer		Laird-Signal Integrity Products
Series		MGV
Packaging		Tape & Reel (TR) Cut Tape (CT)
Part Status		Active
Tolerance		±20%
Package / Case		Nonstandard
Size / Dimension		0.531" L x 0.496" W (13.50mm x 12.60mm)
Mounting Type		Surface Mount
Shielding		Shielded
Type		Molded
Operating Temperature		-40°C ~ 125°C
DC Resistance (DCR)		2mOhm Max
Current - Saturation (Isat)		49A
Inductance Frequency - Test		100 kHz
Height - Seated (Max)		0.256" (6.50mm)
Inductance		1 µH
Current Rating (Amps)		32 A

Documents & Media

RESOURCE TYPE		LINK
Datasheets		MGV12071R0M-10
Datasheets		MGV1207100M-10 Drawing

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8504.50.4000
Moisture Sensitivity Level (MSL)		Not Applicable
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant

In Stock: 466

Can ship immediately.
