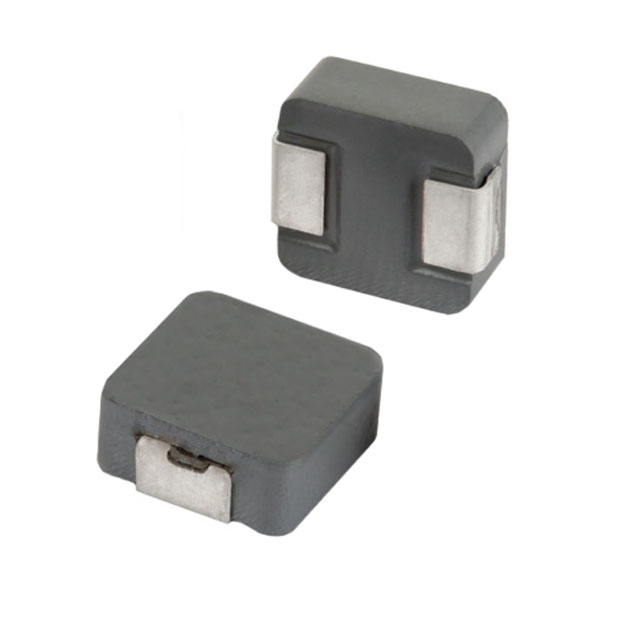

MGV1004R56M-10

MGV1004R56M-10

Part Number	MGV1004R56M-10
Manufacturer	Laird-Signal Integrity Products
Other Part Numbers	240-2823-2-ND 240-2823-1-ND 240-2823-6-ND 240-2823CT-ND 240-2823-6 240-2823TR-ND 240-2823-1 240-2823DKR-ND 240-2823-2 240-2823CT 240-2823TR 240-2823DKR
Description	FIXED IND 560NH 27.5A 1.8MOHM SM
Detailed Description	560 nH Shielded Molded Inductor 27.5 A 1.8mOhm Max Nonstandard
Manufacturer Standard Lead Time	11 weeks

Product Attributes

Category		Inductors, Coils, Chokes Fixed Inductors
Manufacturer		Laird-Signal Integrity Products
Series		MGV
Packaging		Tape & Reel (TR) Cut Tape (CT)
Part Status		Active
Tolerance		±20%
Package / Case		Nonstandard
Size / Dimension		0.433" L x 0.394" W (11.00mm x 10.00mm)
Mounting Type		Surface Mount
Shielding		Shielded
Type		Molded
Operating Temperature		-40°C ~ 125°C
DC Resistance (DCR)		1.8mOhm Max
Ratings		AEC-Q200
Current - Saturation (Isat)		49A
Inductance Frequency - Test		100 kHz
Height - Seated (Max)		0.169" (4.30mm)
Inductance		560 nH
Current Rating (Amps)		27.5 A

Documents & Media

RESOURCE TYPE		LINK
Datasheets		MGV1004R56M-10
Datasheets		MGV1004100M-10 Drawing

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8504.50.4000
Moisture Sensitivity Level (MSL)		Not Applicable
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant
