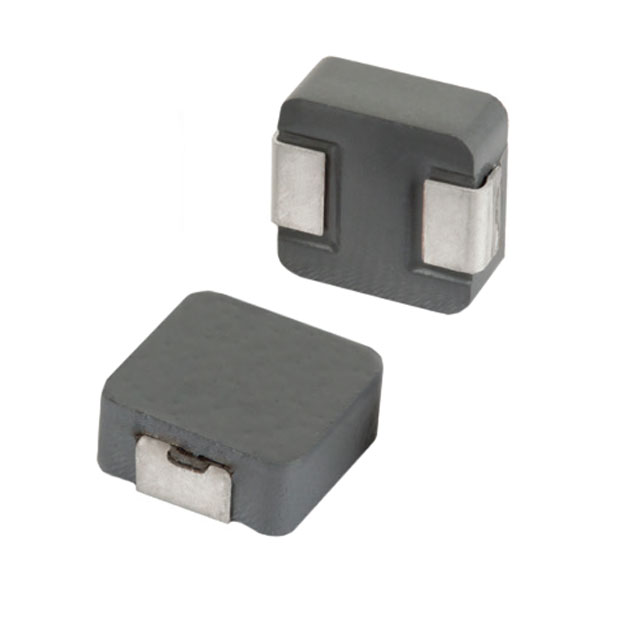

MGV0603220M-10

Part Number
MGV0603220M-10
Manufacturer Laird-Signal Integrity Products
Other Part Numbers
240-3176-2-ND
240-3176-1-ND
240-3176-6-ND
240-3176-1
240-3176-2
240-3176-6
Description FIXED IND 22UH 2A 190 MOHM SMD
Detailed Description 22 µH Shielded Molded Inductor 2 A 190mOhm Max Nonstandard
Manufacturer Standard Lead Time 11 weeks
Datasheet Datasheet

Product Attributes

Category
Manufacturer Laird-Signal Integrity Products
Series
MGV
Packaging
Tape & Reel (TR)
Cut Tape (CT)
Part Status Active
Tolerance ±20%
Package / Case Nonstandard
Size / Dimension 0.287" L x 0.264" W (7.30mm x 6.70mm)
Mounting Type Surface Mount
Shielding Shielded
Type Molded
Operating Temperature -55°C ~ 125°C
DC Resistance (DCR) 190mOhm Max
Current - Saturation (Isat) 3.5A
Inductance Frequency - Test 100 kHz
Height - Seated (Max) 0.134" (3.40mm)
Inductance 22 µH
Current Rating (Amps) 2 A

Documents & Media

RESOURCE TYPE LINK
Datasheets MGV0603220M-10

Environmental & Export Classifications

ATTRIBUTE DESCRIPTION
ECCN EAR99
HTSUS 8504.50.8000
Moisture Sensitivity Level (MSL) Not Applicable
REACH Status REACH Unaffected
RoHS Status ROHS3 Compliant
