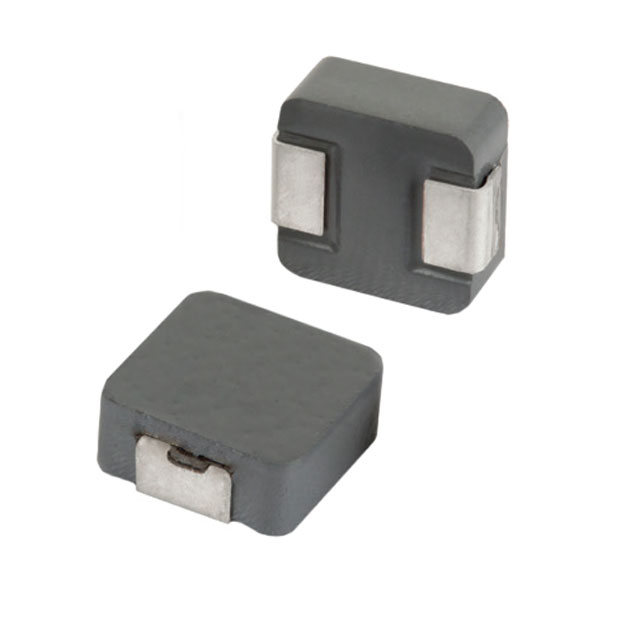

MGV0512R10N-10

MGV0512R10N-10

Part Number	MGV0512R10N-10
Manufacturer	Laird-Signal Integrity Products
Other Part Numbers	240-3136-2-ND 240-3136-1-ND 240-3136-6-ND 240-3136-2 240-3136-1 240-3136-6
Description	FIXED IND 100NH 14A 5.2MOHM SMD
Detailed Description	100 nH Shielded Molded Inductor 14 A 5.2mOhm Max Nonstandard
Manufacturer Standard Lead Time	11 weeks
Datasheet	Datasheet

Product Attributes

Category		Inductors, Coils, Chokes Fixed Inductors
Manufacturer		Laird-Signal Integrity Products
Series		MGV
Packaging		Tape & Reel (TR) Cut Tape (CT)
Part Status		Active
Tolerance		±30%
Package / Case		Nonstandard
Size / Dimension		0.224" L x 0.205" W (5.70mm x 5.20mm)
Mounting Type		Surface Mount
Shielding		Shielded
Type		Molded
Operating Temperature		-55°C ~ 125°C
DC Resistance (DCR)		5.2mOhm Max
Current - Saturation (Isat)		14.5A
Inductance Frequency - Test		100 kHz
Height - Seated (Max)		0.047" (1.20mm)
Inductance		100 nH
Current Rating (Amps)		14 A

Documents & Media

RESOURCE TYPE		LINK
Datasheets		MGV0512R10N-10

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8504.50.8000
Moisture Sensitivity Level (MSL)		Not Applicable
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant
