Part Number |
MGV0312100M-10
|
---|---|
Manufacturer | Laird-Signal Integrity Products |
Other Part Numbers |
240-3100-2-ND
240-3100-1-ND
240-3100-6-ND
240-3100-6
240-3100-2
240-3100-1
|
Description | FIXED IND 10UH 1A 550 MOHM SMD |

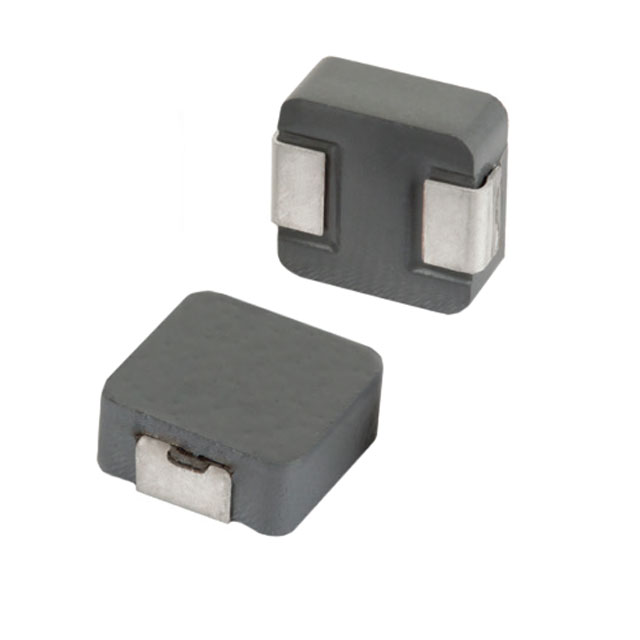

Detailed Description | 10 µH Shielded Molded Inductor 1 A 550mOhm Max Nonstandard |
Manufacturer Standard Lead Time | 11 weeks |
Datasheet | Datasheet |
Category | ||
---|---|---|
Manufacturer | Laird-Signal Integrity Products | |
Series |
MGV
|
|
Packaging |
Tape & Reel (TR)
Cut Tape (CT)
|
|
Part Status | Active | |
Tolerance | ±20% | |
Package / Case | Nonstandard | |
Size / Dimension | 0.138" L x 0.126" W (3.50mm x 3.20mm) | |
Mounting Type | Surface Mount | |
Shielding | Shielded | |
Type | Molded | |
Operating Temperature | -55°C ~ 125°C | |
DC Resistance (DCR) | 550mOhm Max | |
Current - Saturation (Isat) | 1.4A | |
Inductance Frequency - Test | 100 kHz | |
Height - Seated (Max) | 0.047" (1.20mm) | |
Inductance | 10 µH | |
Current Rating (Amps) | 1 A |
RESOURCE TYPE | LINK | |
---|---|---|
Datasheets | MGV0312100M-10 |
ATTRIBUTE | DESCRIPTION | |
---|---|---|
ECCN | EAR99 | |
HTSUS | 8504.50.8000 | |
Moisture Sensitivity Level (MSL) | Not Applicable | |
REACH Status | REACH Unaffected | |
RoHS Status | ROHS3 Compliant |
