MDF7-25S-2.54DSA _ Headers, Receptacles, Female Sockets_Rectangular Connectors_Connectors, Interconnects

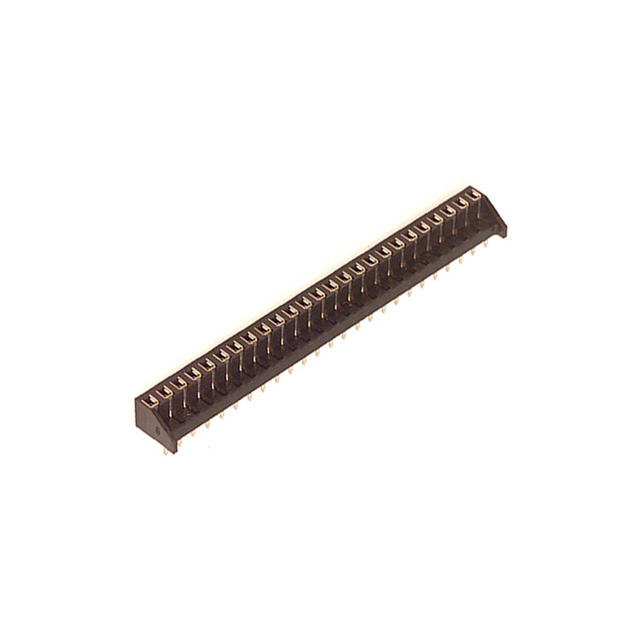

Part Number	MDF7-25S-2.54DSA
Manufacturer	Hirose Electric Co., Ltd.
Other Part Numbers	H2570-ND *MDF7-25S-2.54DSA H2570
Description	CONN RCPT 25POS 0.1 TIN PCB
Detailed Description	25 Position Receptacle, Bottom Entry Connector 0.100" (2.54mm) Through Hole Tin
Datasheet	Datasheet

Category		Connectors, Interconnects Rectangular Connectors Headers, Receptacles, Female Sockets
Manufacturer		Hirose Electric Co., Ltd.
Series		MDF7
Packaging		Bulk
Part Status		Obsolete
Connector Type		Receptacle, Bottom Entry
Voltage Rating		250VAC
Current Rating (Amps)		3A
Mounting Type		Through Hole
Number of Positions		25
Style		Board to Board
Operating Temperature		-35°C ~ 85°C
Contact Type		Female Socket
Fastening Type		Push-Pull
Number of Positions Loaded		All
Termination		Solder
Material Flammability Rating		UL94 V-0
Insulation Color		Black
Pitch - Mating		0.100" (2.54mm)
Contact Finish - Mating		Tin
Contact Finish Thickness - Mating		39.4µin (1.00µm)
Contact Length - Post		0.118" (3.00mm)
Insulation Height		0.197" (5.00mm)
Number of Rows		1

RESOURCE TYPE		LINK
Datasheets		MDF7-25S-2.54DSA

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8536.69.4040
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		RoHS non-compliant

This product is no longer manufactured.
